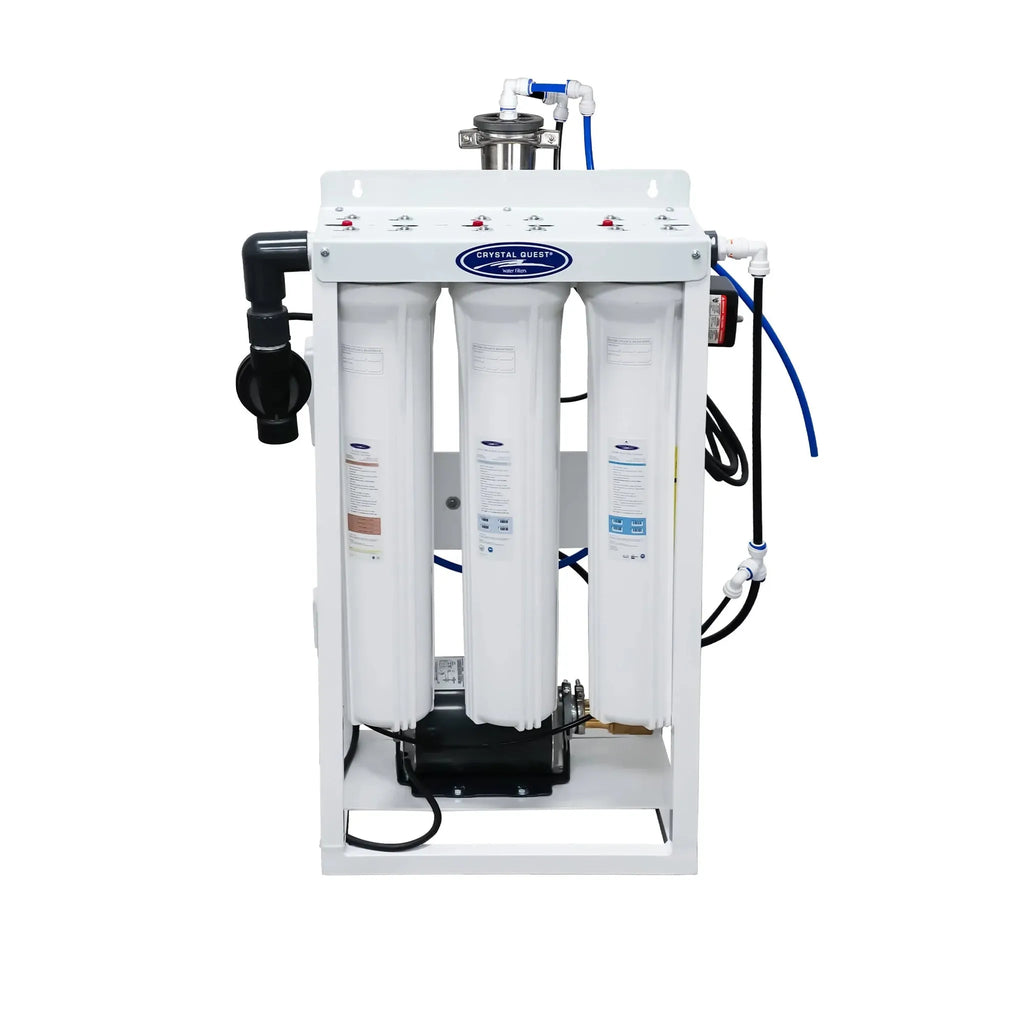

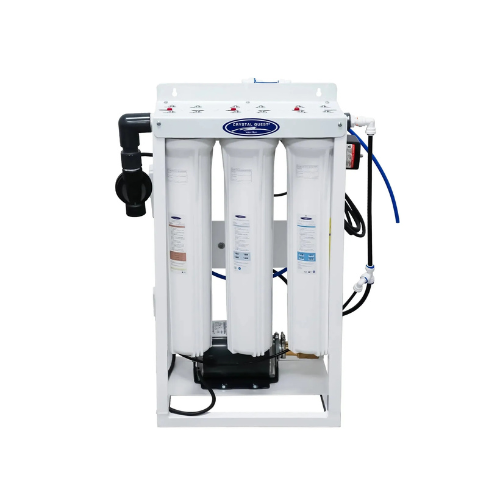

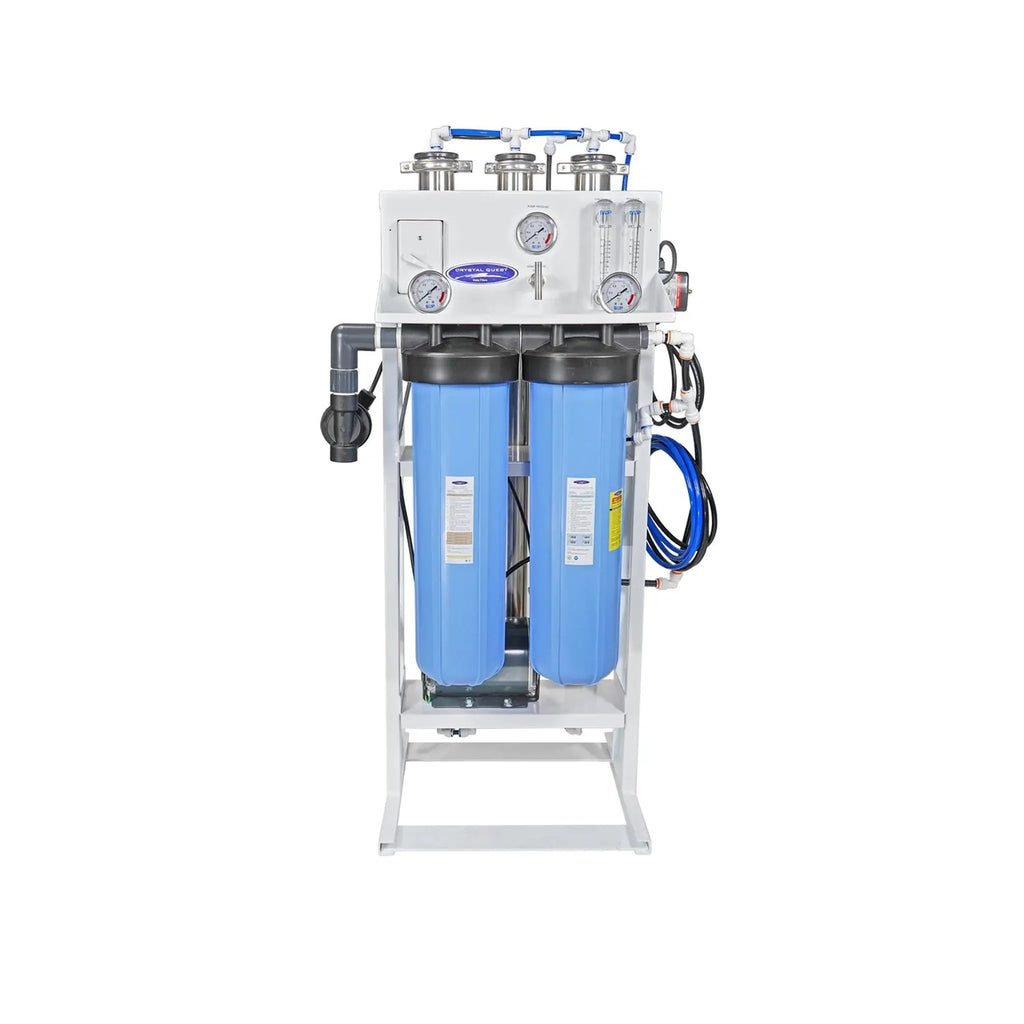

Crystal Quest Whole House Reverse Osmosis System
300 GPD / Standalone / Brass Rotary
$2,227.00
Sale price
$2,227.00
Regular price
Skip to product information
Crystal Quest Whole House Reverse Osmosis System
$2,227.00
Sale price
$2,227.00
Regular price
Overview
Crystal Quest Whole House Reverse Osmosis System available from Healthy Hydro Supply Co is a whole house reverse osmosis water filtration system designed to deliver purified water throughout the entire home.
This high-performing whole house RO system combines commercial-grade reverse osmosis technology with whole-home storage, pumping, and optional post-treatment upgrades.
Product Information
- Product Name: Crystal Quest Whole House Reverse Osmosis System
- Brand: Crystal Quest
- Sold By: Healthy Hydro Supply Co
- Product Type: Whole house reverse osmosis system
- System Type: Whole house reverse osmosis water filtration system
- Primary Use: Purified water throughout the entire home
- Performance Positioning: High-performing whole house RO system backed by more than 25 years of experience
- Expected System Life: Designed to last 15–20 years with proper maintenance and regular prefilter and membrane changes
- Testing: Every system is tested in-house before shipping
- Installation Readiness: Arrives operational and requires minimal plumbing
- System Design: Modular, expandable, lightweight, customizable, and economical
- Maintenance: Low operational maintenance and low maintenance cost
- Flow Rate Options: 9 different flow rates available
- RO Capacity Range: Commercial-grade RO systems from 200–7,000 GPD
- Compliance / Quality: CE compliant, made in the USA, and built with Scientific World Products ISO certified components
Key System Benefits
- Compact, space-saving design
- Easily accessible components
- Expandable and lightweight construction
- Fully equipped and customizable
- Low operational costs
- Low maintenance costs
- Easy maintenance and servicing
- Factory tested and preserved
- CE compliant
- Made in the USA
- Scientific World Products ISO certified components
Description
The Crystal Quest Whole House Reverse Osmosis System is designed for homeowners who want purified water throughout the entire home, not just at one faucet.
This system uses commercial-grade reverse osmosis technology with prefiltration, an atmospheric water storage tank, pump, float switches, and optional post-treatment upgrades.
Crystal Quest Whole House RO Systems are designed for long-term performance when properly maintained. With regular prefilter and membrane changes, these systems are designed to last approximately 15 to 20 years.
Each system is:
- Tested in-house before shipping
- Factory tested and preserved
- Designed to arrive operational
- Built to require minimal plumbing
- Modular and expandable
- Lightweight and customizable
- Designed for low operational maintenance
- Designed for low maintenance cost
With 9 different flow rates available and RO capacities ranging from 200 to 7,000 gallons per day, customers can choose a system sized to match household water demand, available space, and purification needs.
Benefits
Crystal Quest Whole House Reverse Osmosis Systems are designed for customers who want high-level water purification throughout the entire home.
Key Benefits
- Delivers purified water throughout the whole home
- Uses commercial-grade reverse osmosis technology
- Available in 200–7,000 GPD capacity range
- Offers 9 different flow rate options
- Designed for long-term performance with proper maintenance
- Expected system life of approximately 15–20 years with regular prefilter and membrane changes
- Tested in-house before shipping
- Arrives operational
- Requires minimal plumbing
- Compact and space-saving
- Modular and expandable
- Lightweight and customizable
- Fully equipped system design
- Easily accessible components for servicing
- Low operational maintenance
- Low maintenance cost
- Factory tested and preserved
- CE compliant
- Made in the USA
- Built with Scientific World Products ISO certified components
- Uses prefiltration to help extend reverse osmosis membrane life
- Includes atmospheric water storage tank options
- Includes pump support to move stored water into the home
- Uses float switches to control when the RO system turns on and off based on tank water level
Best For
- Whole home reverse osmosis water purification
- Homes needing purified water throughout the entire house
- Homeowners who want more than point-of-use RO filtration
- Larger homes with higher water demand
- Customers comparing 200–7,000 GPD RO systems
- Homes needing atmospheric storage tank support
- Homes needing pump-fed purified water delivery
- Customers who want optional UV post-treatment
- Customers who want optional remineralization
- Customers who want optional alkalizing postfilter upgrades
- Customers who want TDS monitoring options
- Customers who want expandable and customizable RO system design
- Customers who want a system designed for long-term serviceability
Performance
Crystal Quest Whole House Reverse Osmosis Systems are designed to produce, store, and deliver purified water throughout the home using commercial-grade RO technology.
Whole House Reverse Osmosis Performance
- Designed for purified water throughout the entire home
- Uses commercial-grade reverse osmosis technology
- Designed for whole-home water purification, not just one faucet
- Available in capacities from 200 to 7,000 GPD
- Includes prefiltration to help extend membrane life
- Uses atmospheric water storage tank support
- Uses a pump to move stored water into the household plumbing system
- Uses float switches to regulate system operation based on tank water level
- Designed for long-term performance with proper maintenance
- Factory tested and preserved before shipping

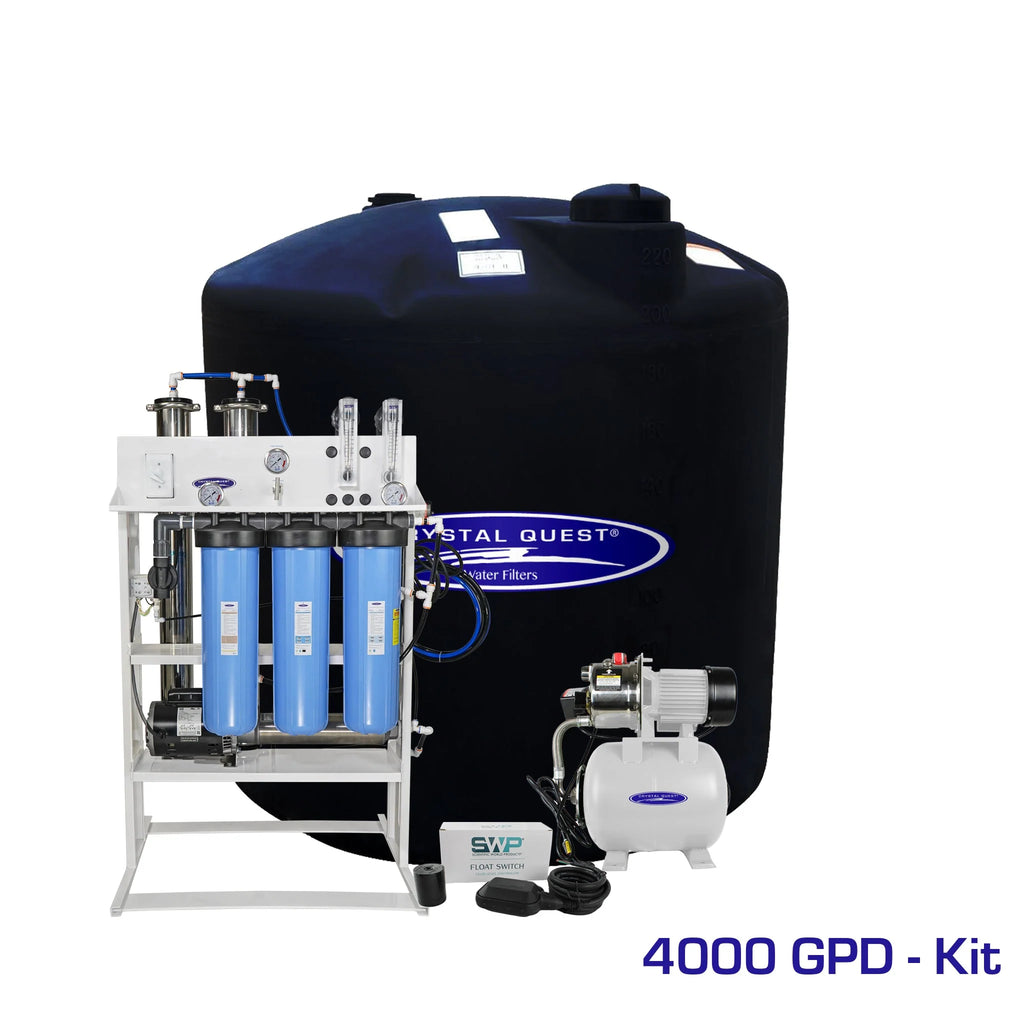

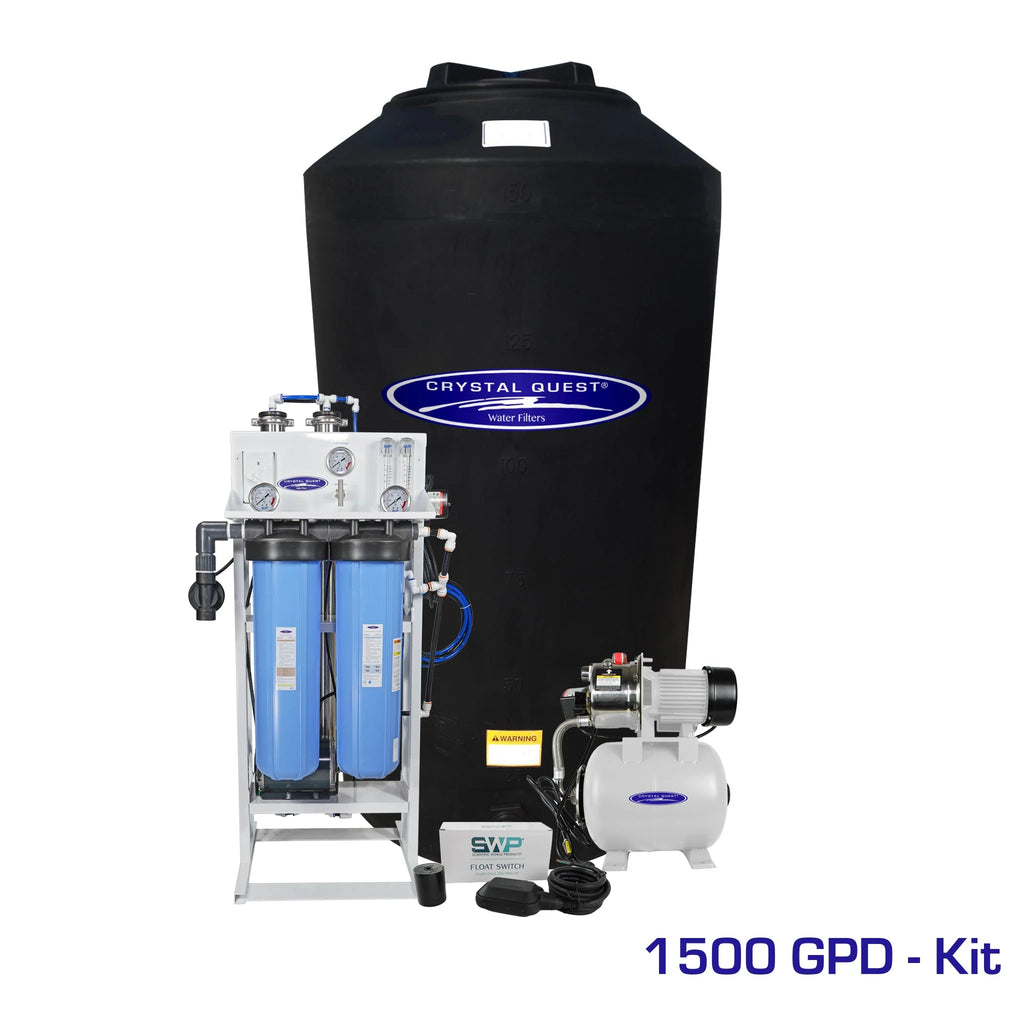

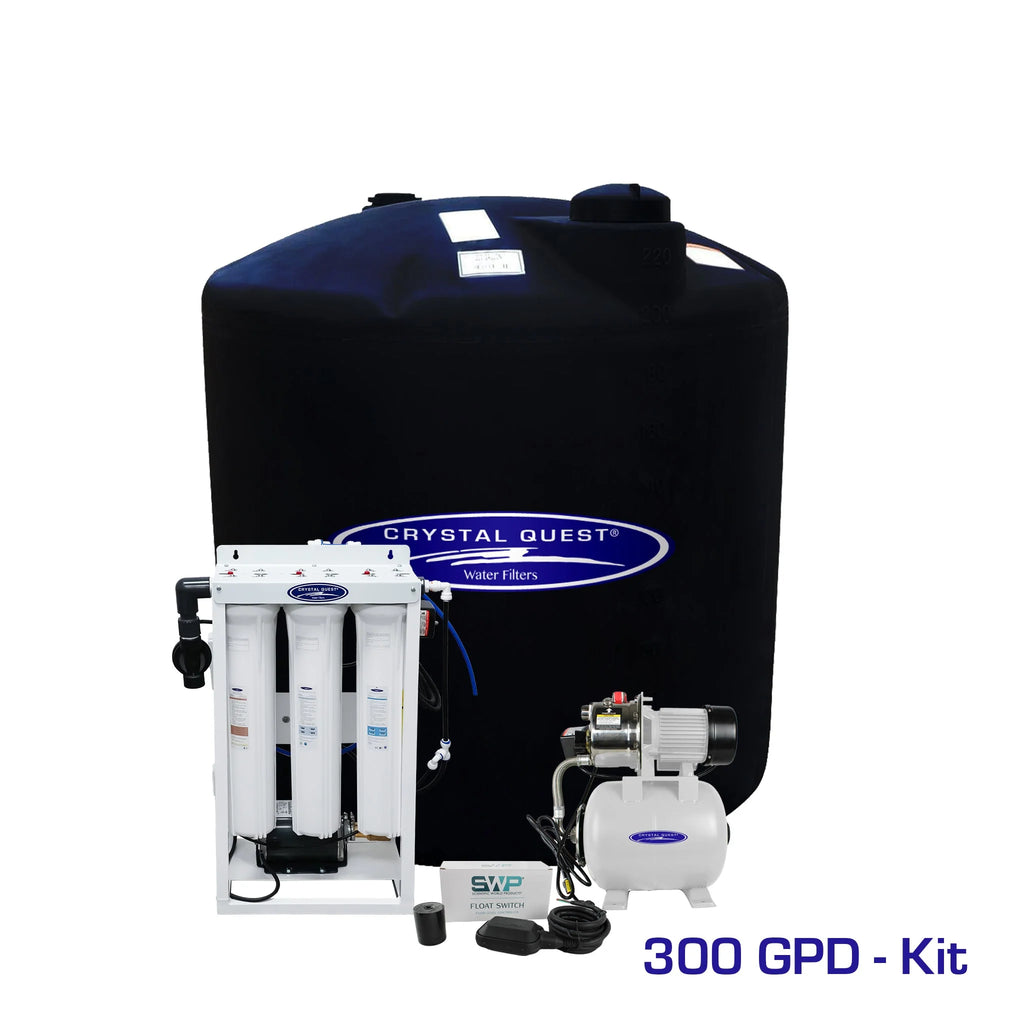

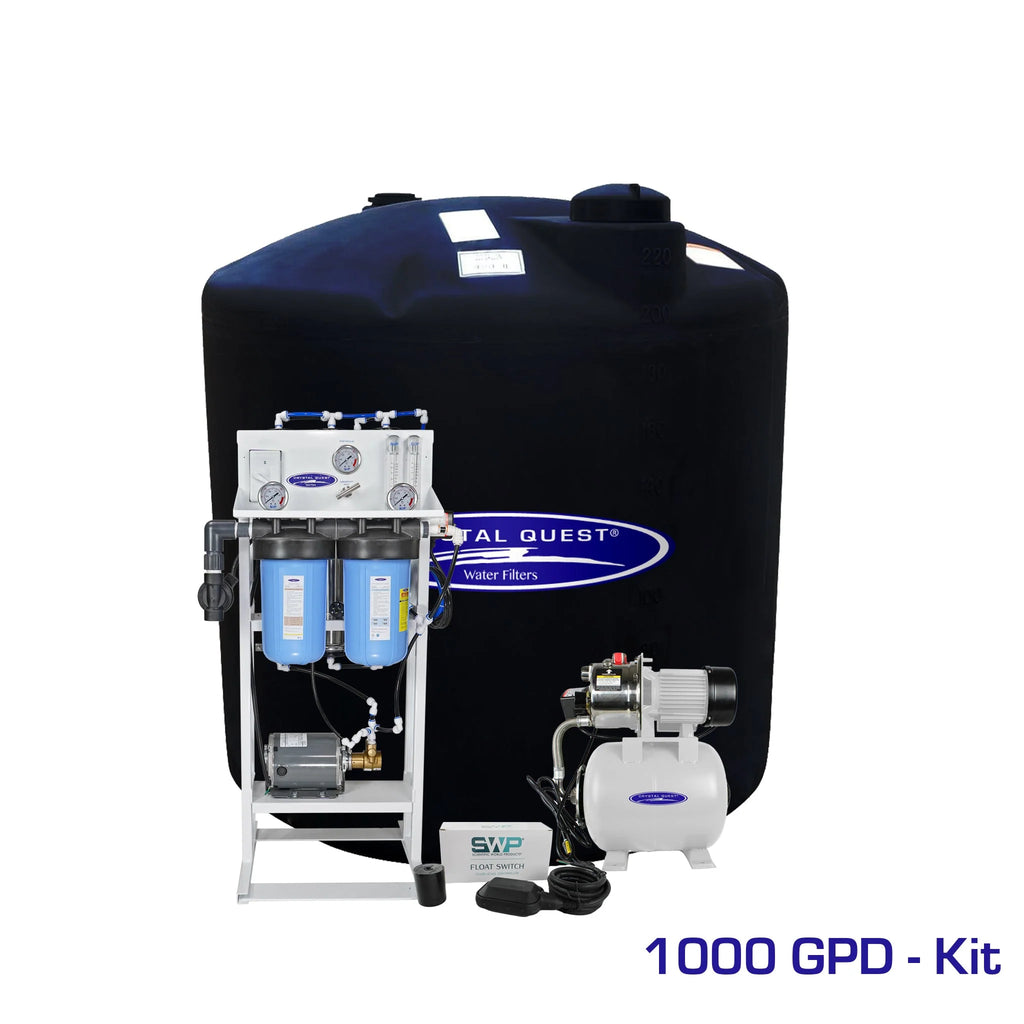

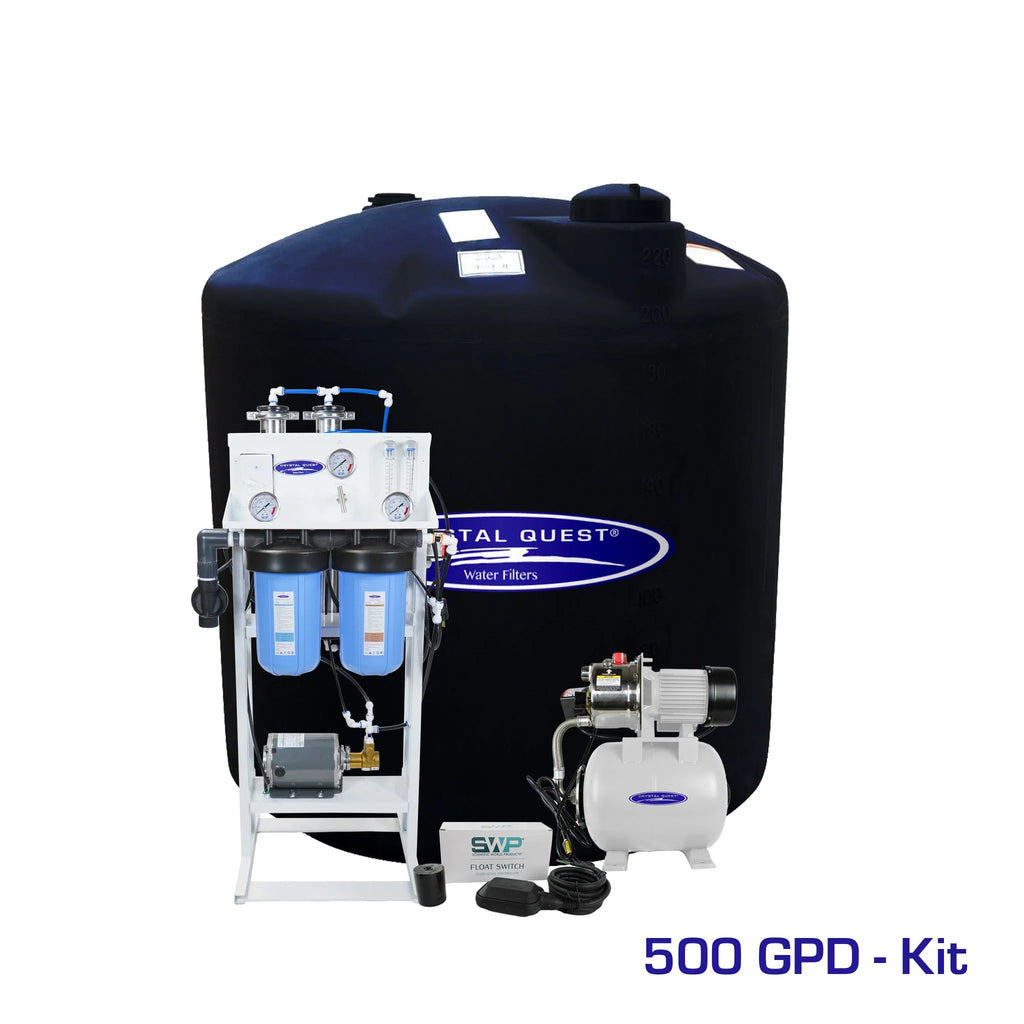

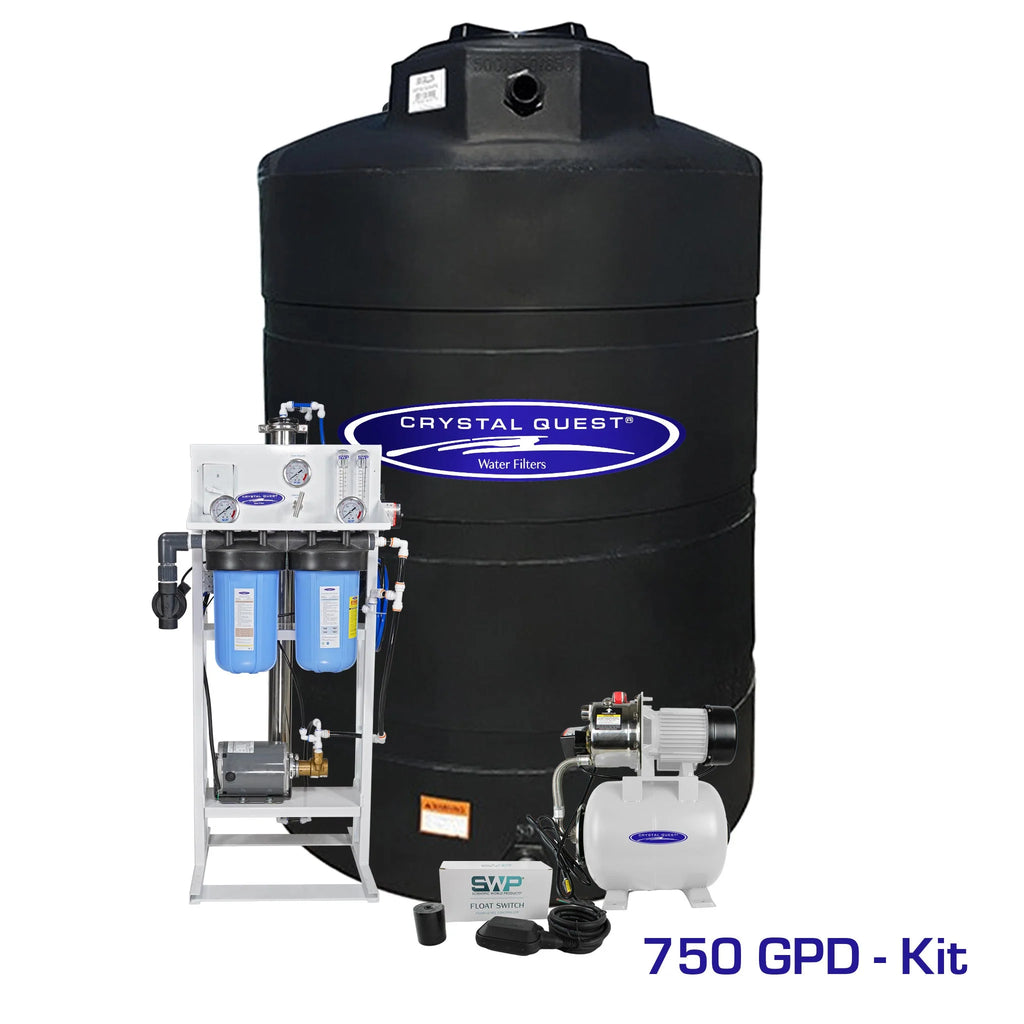

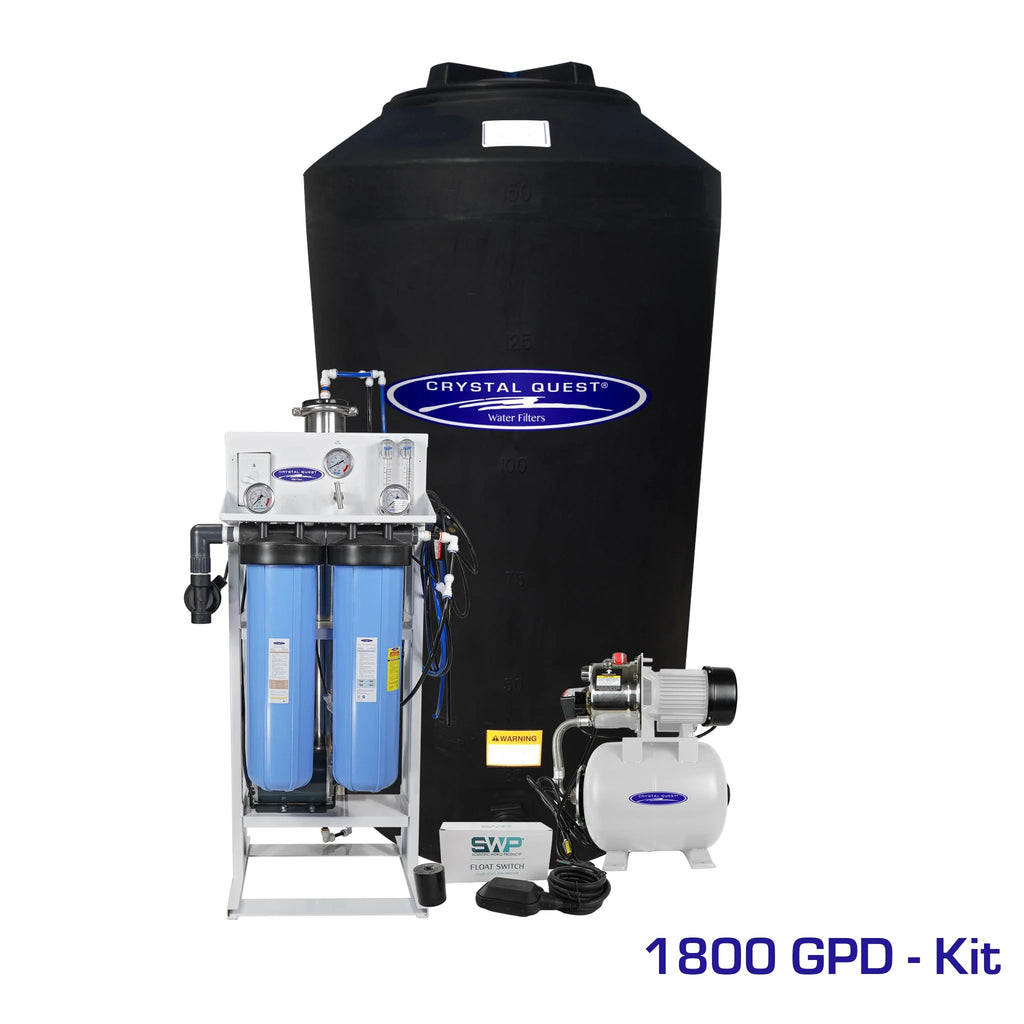

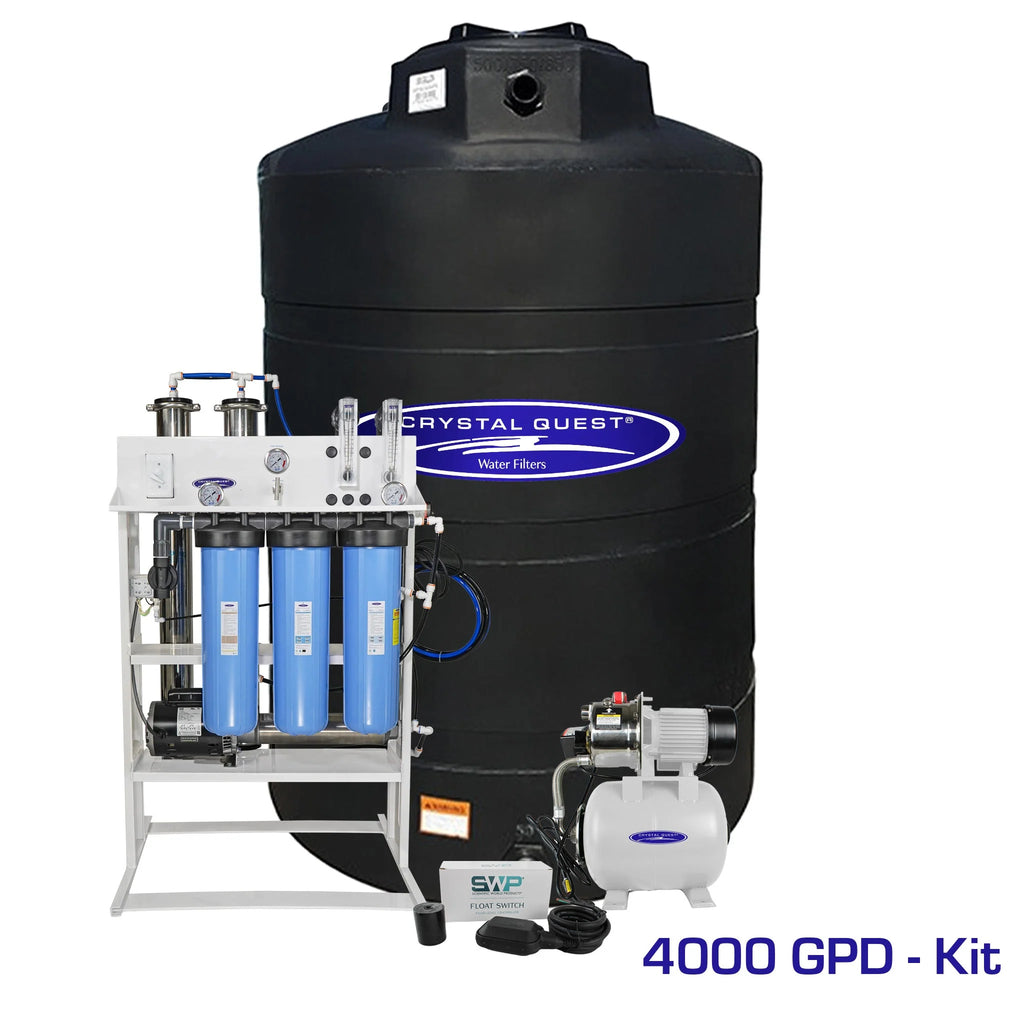

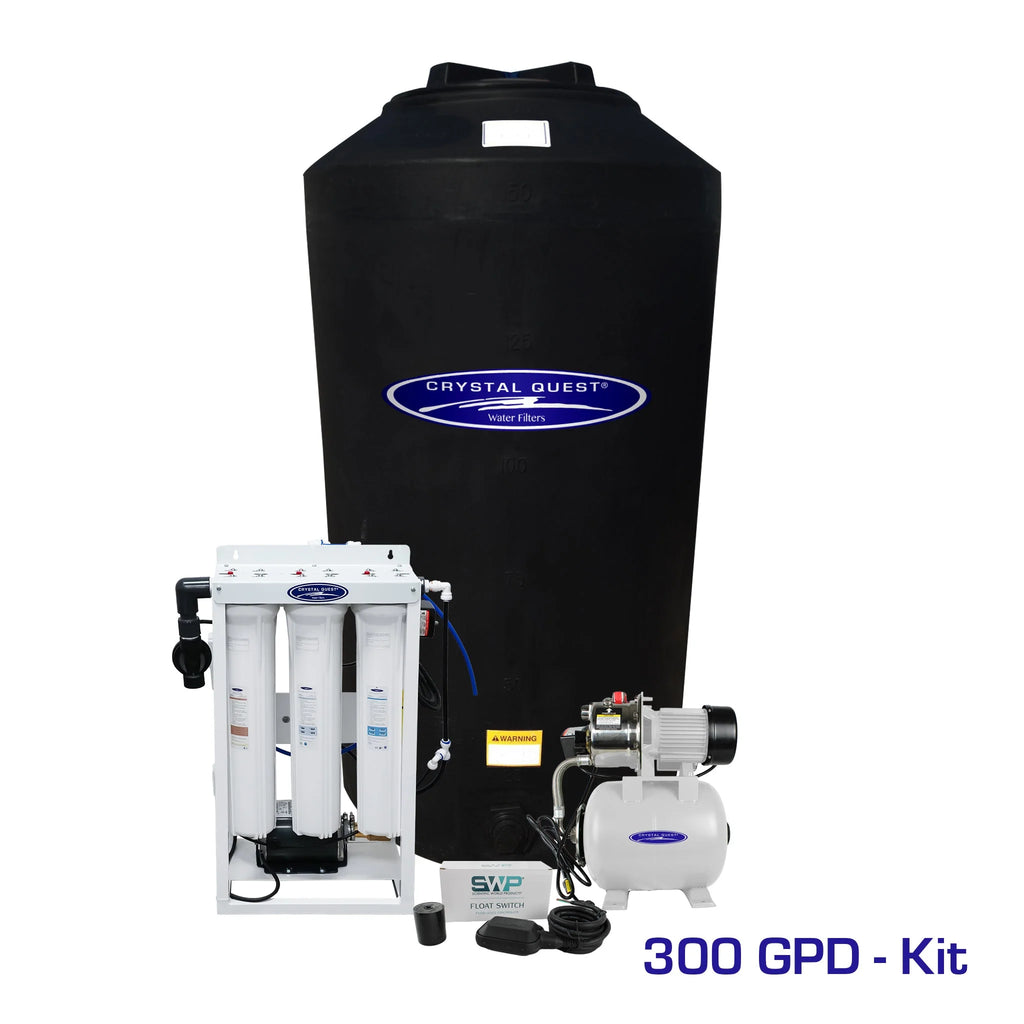

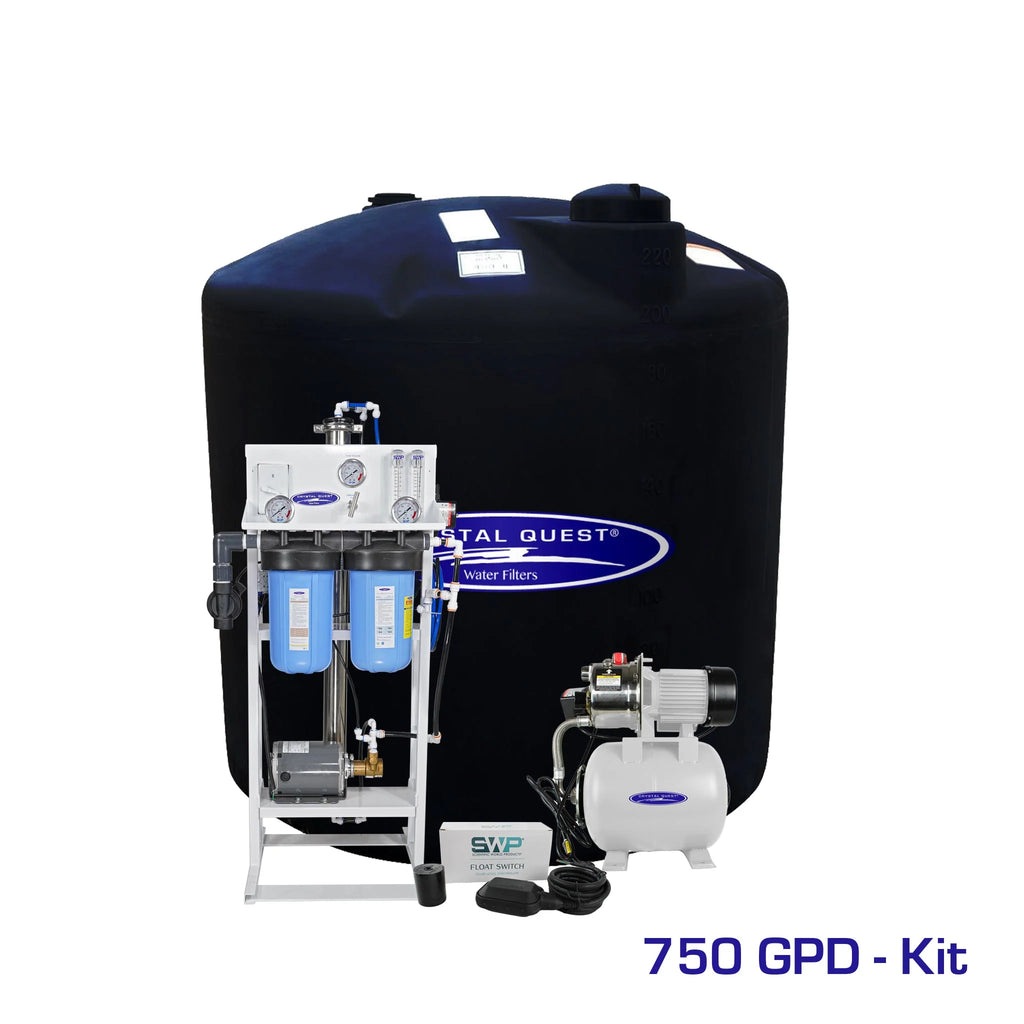

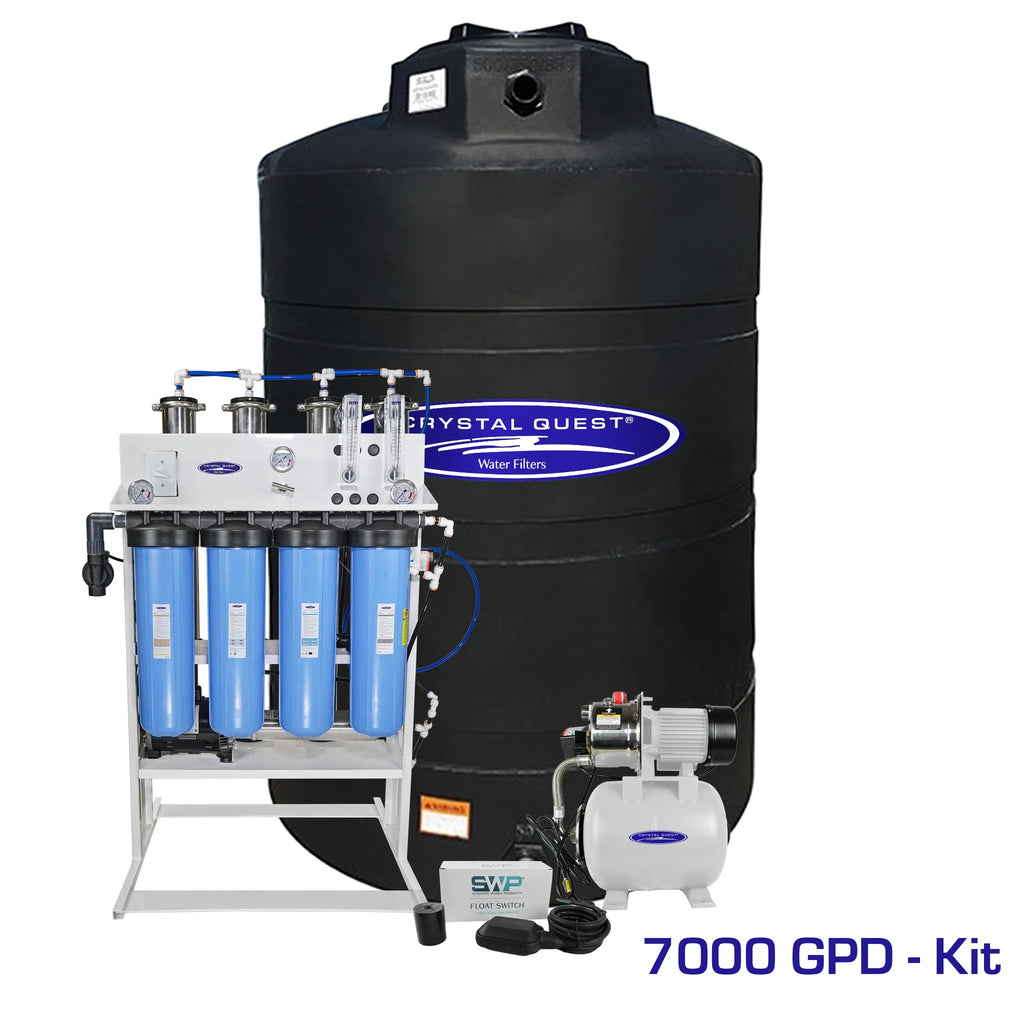

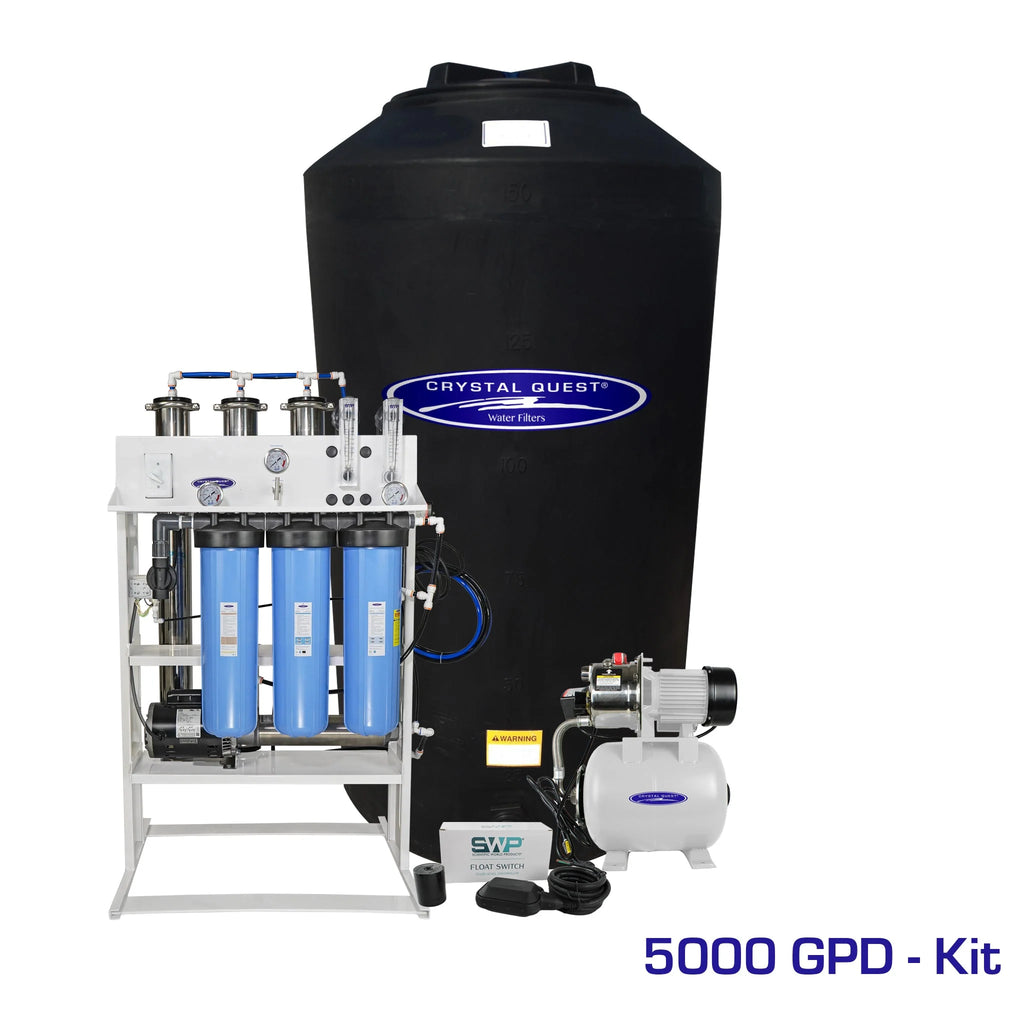

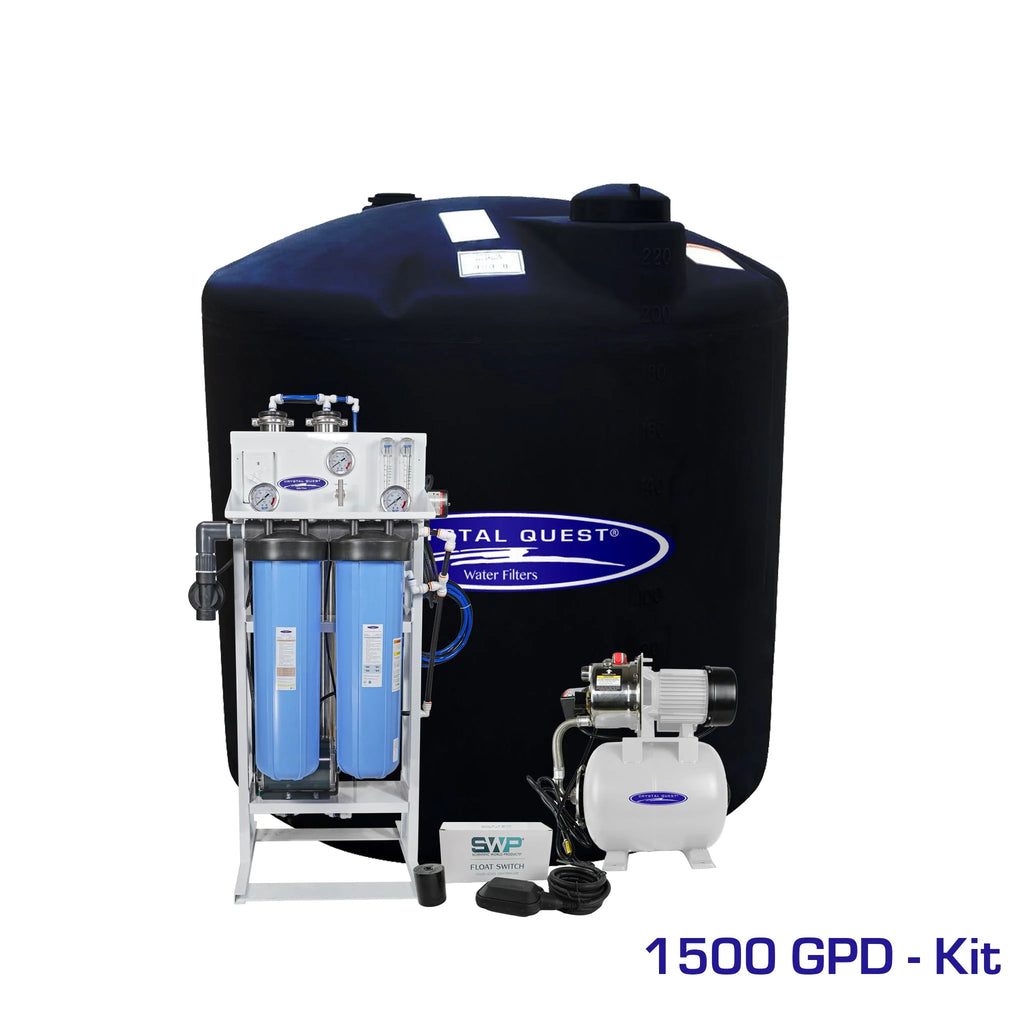

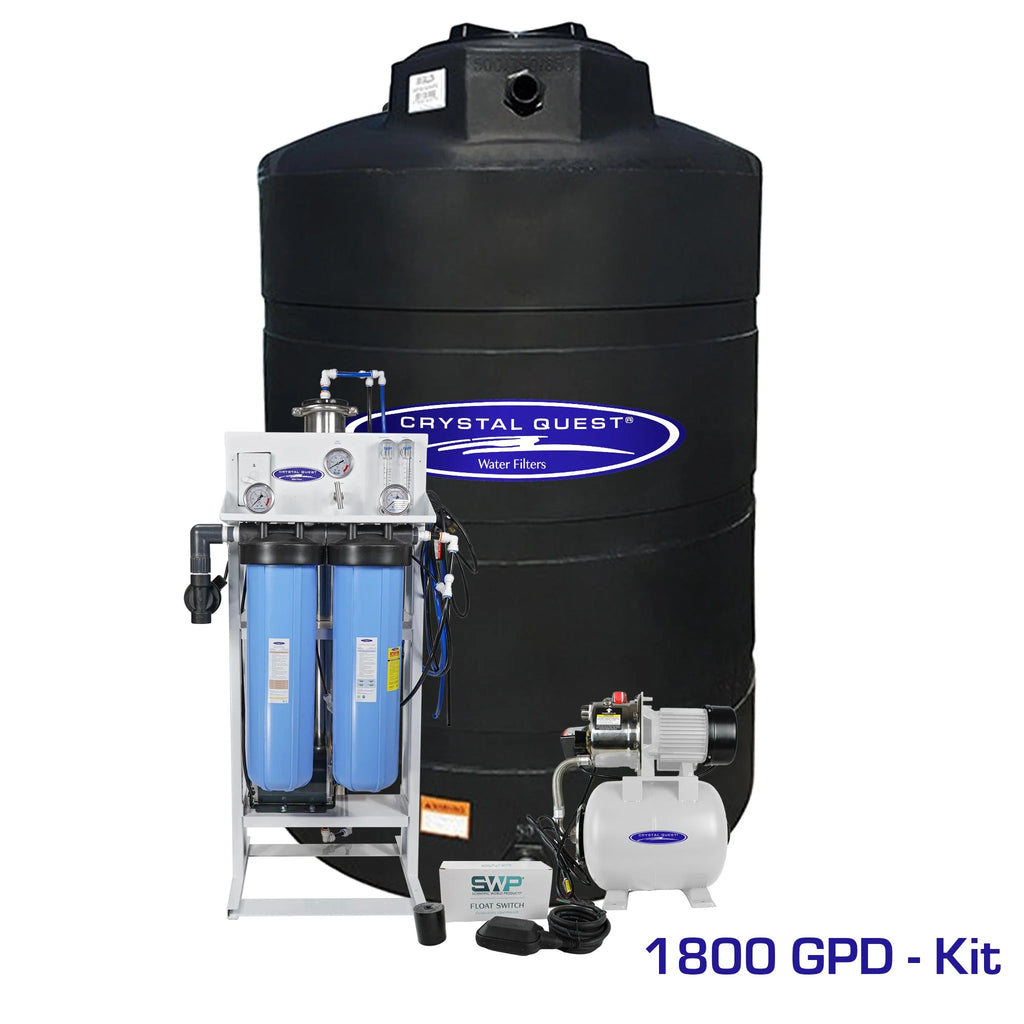

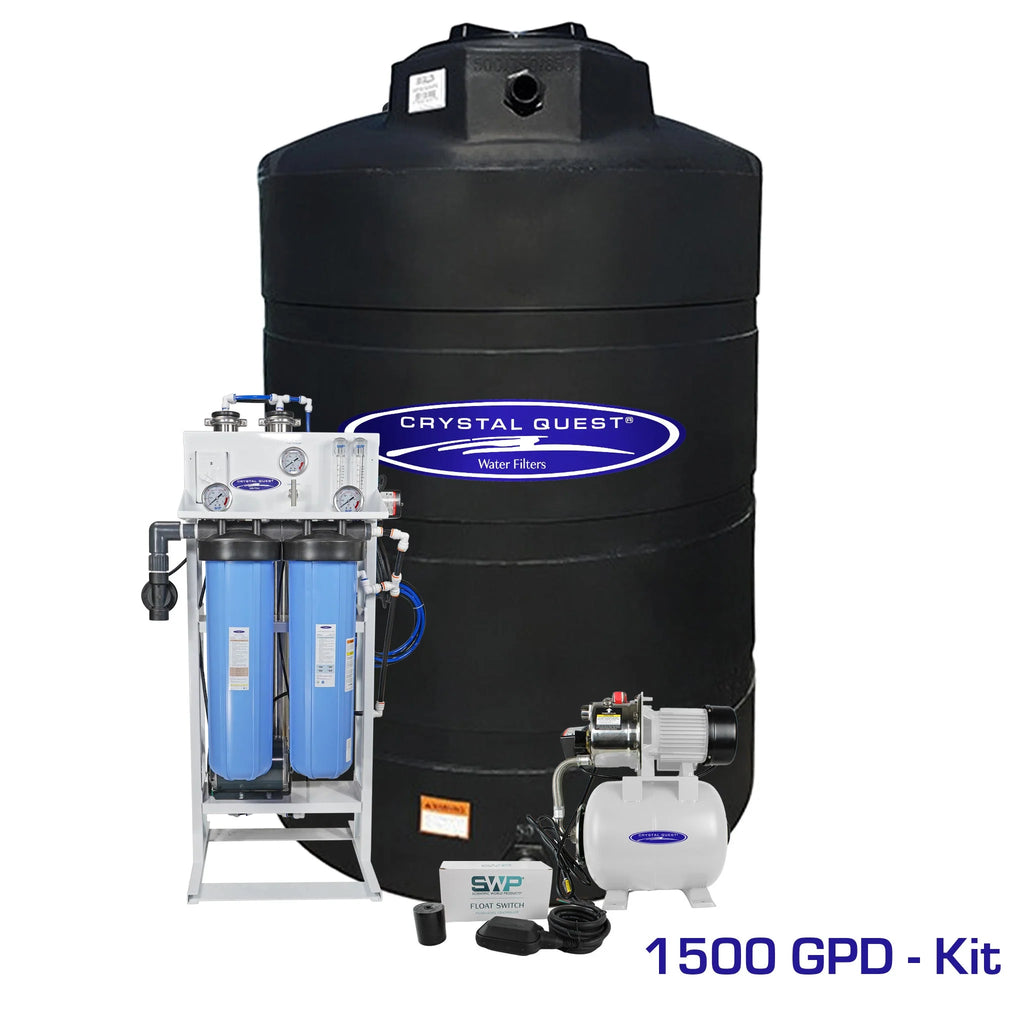

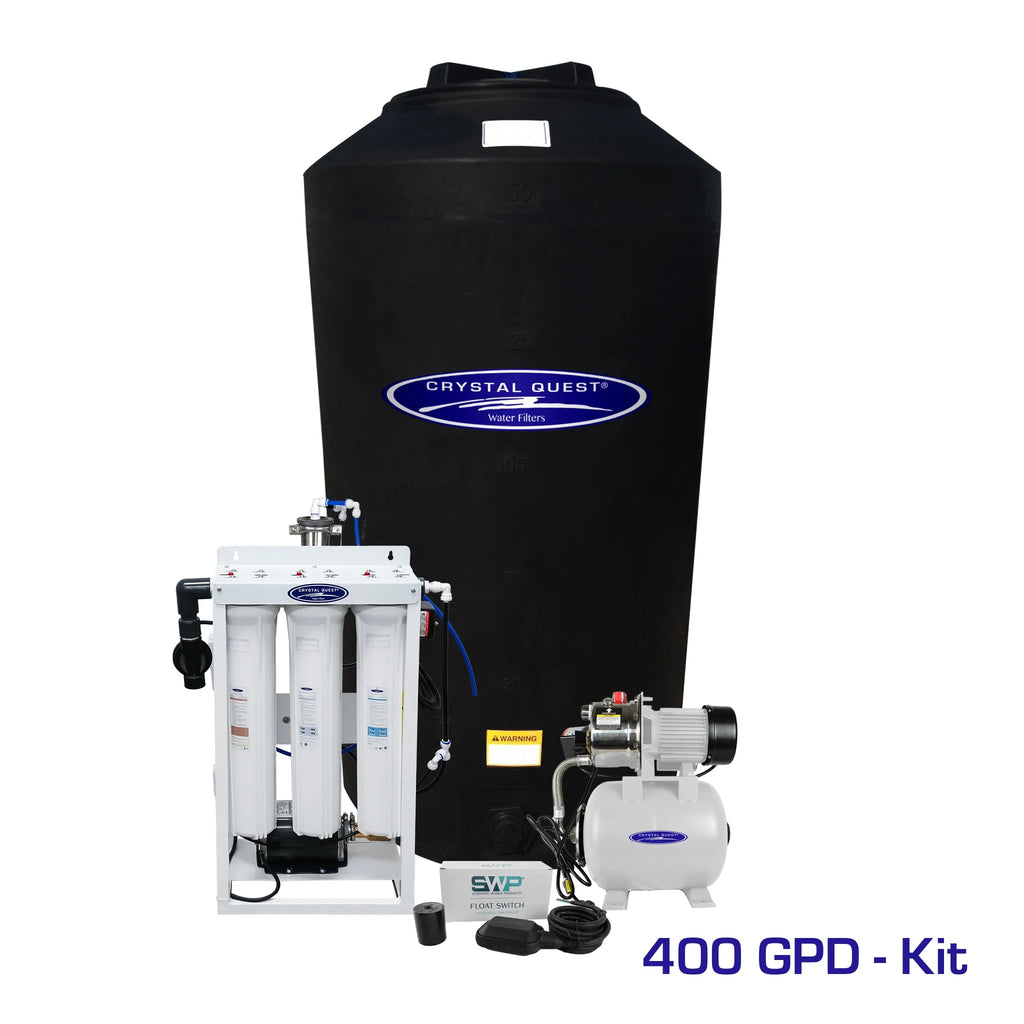

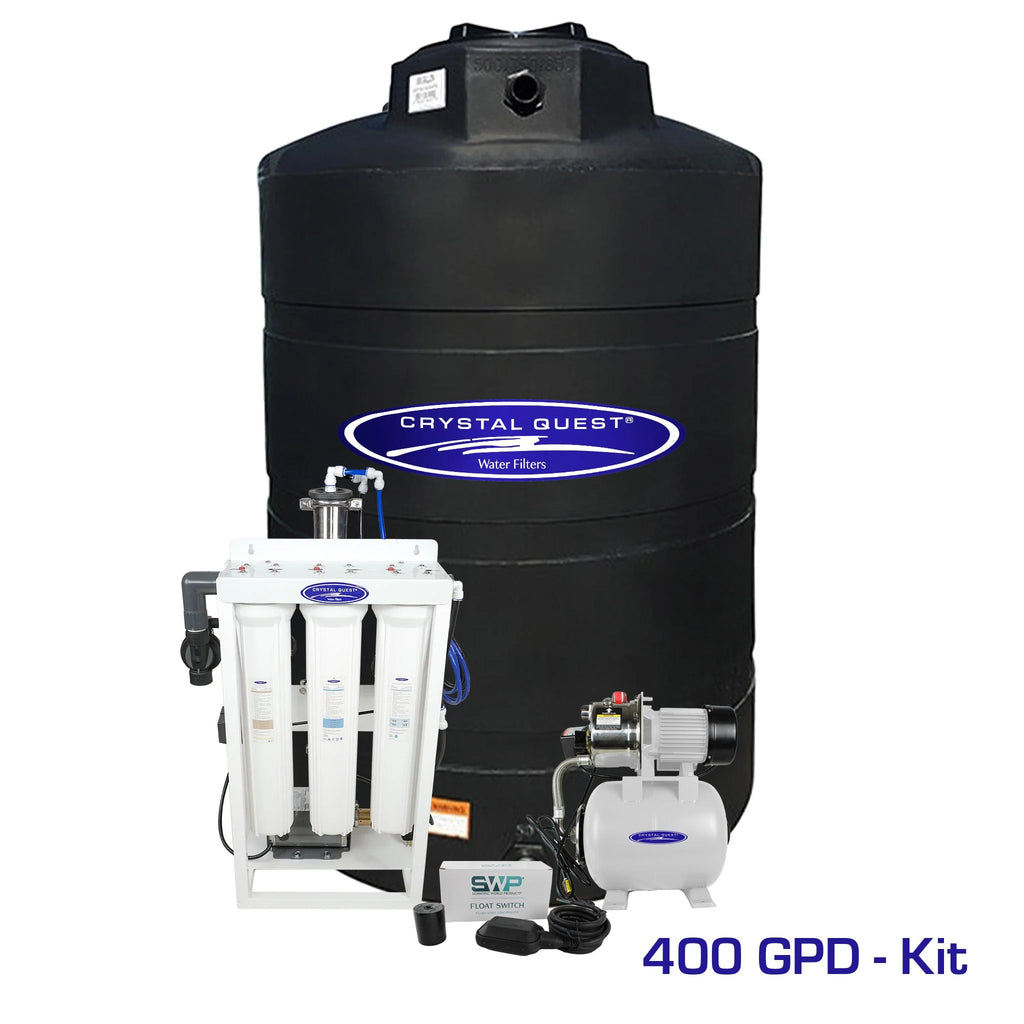

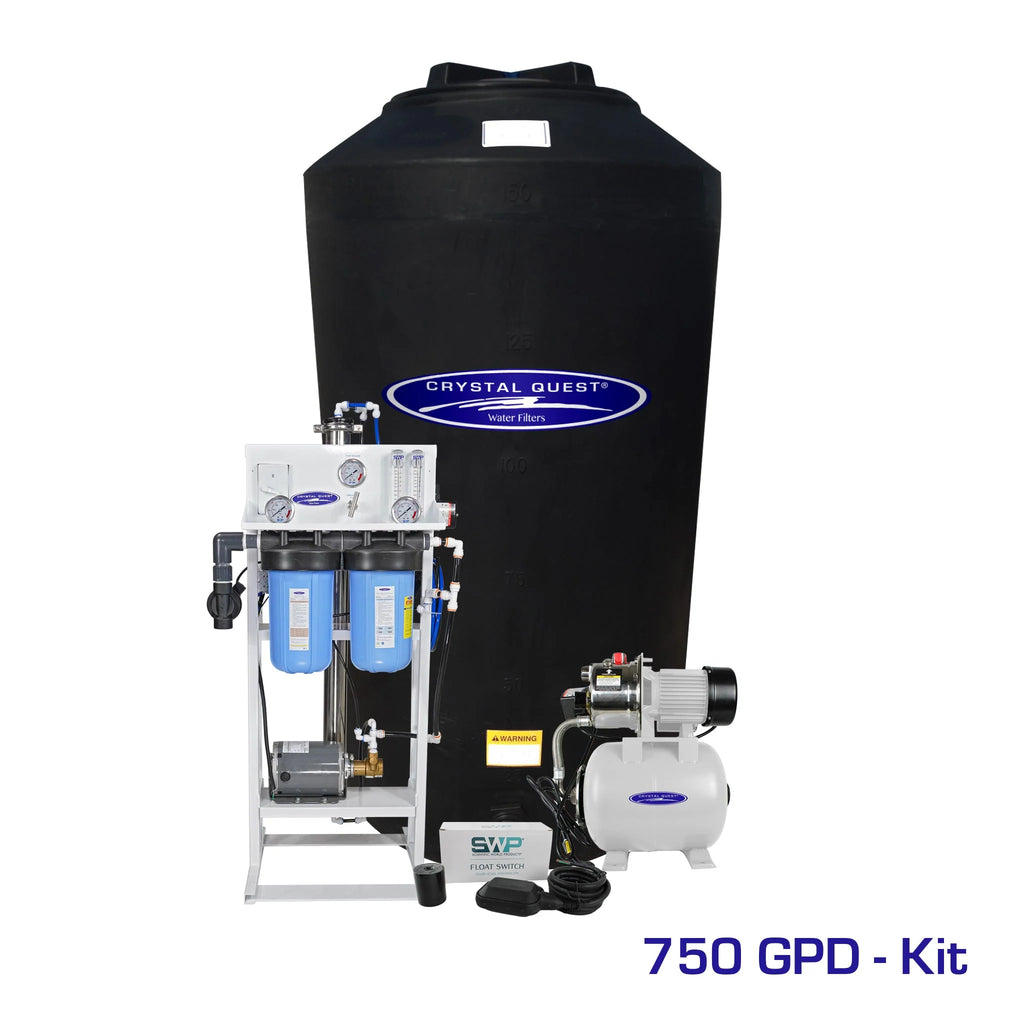

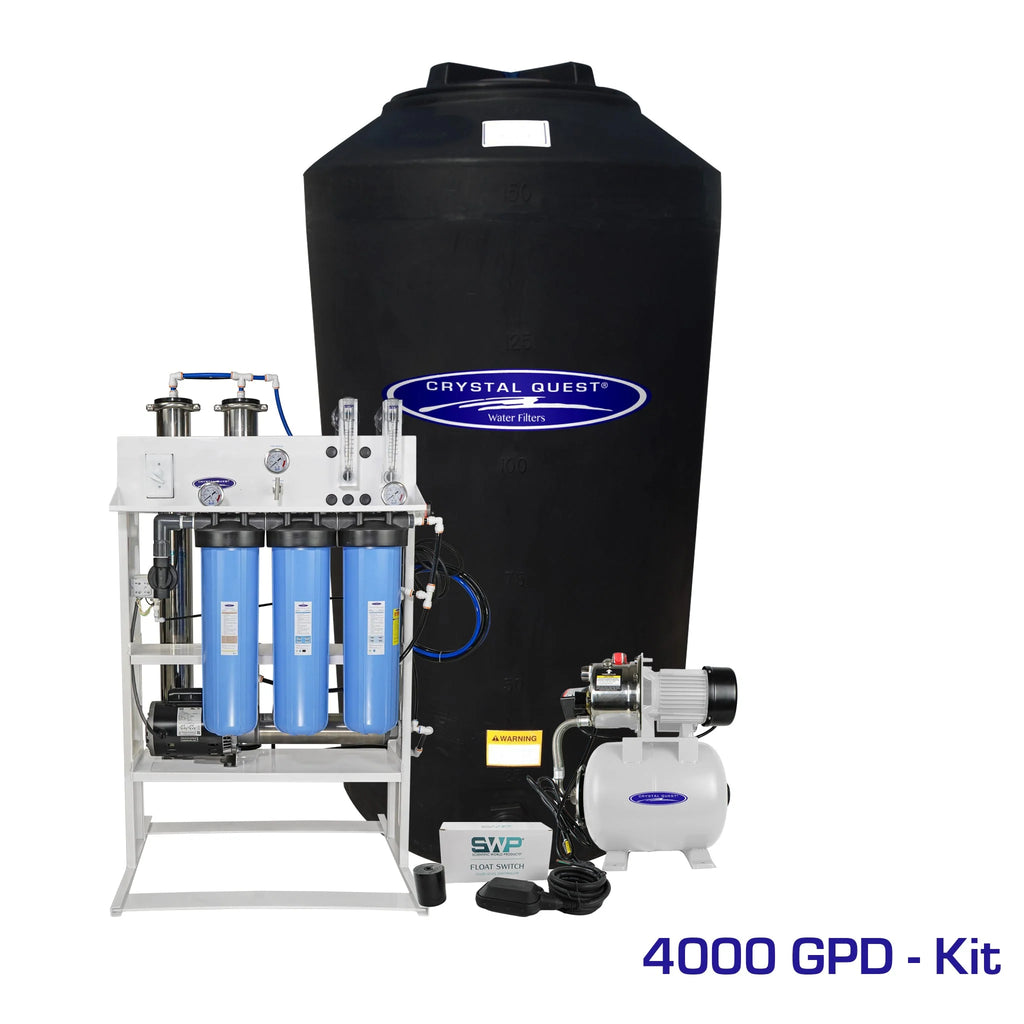

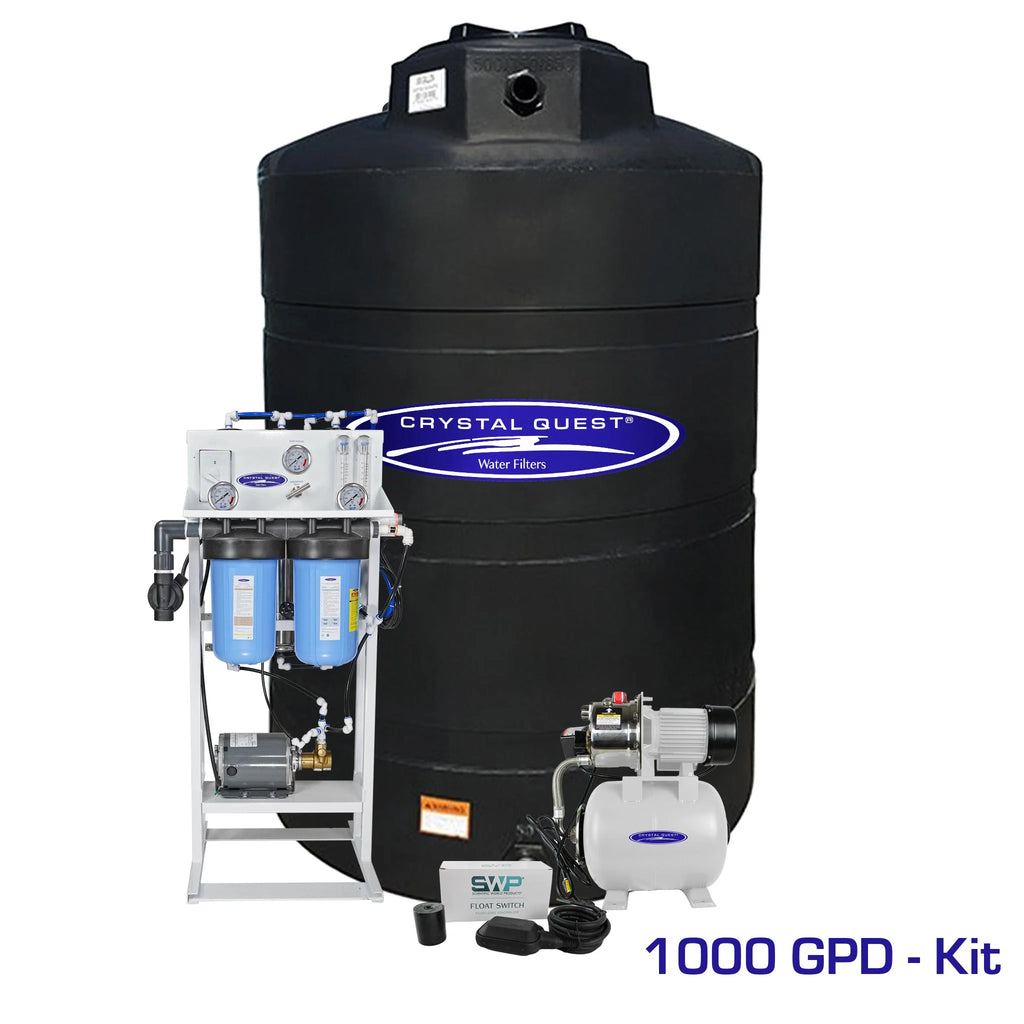

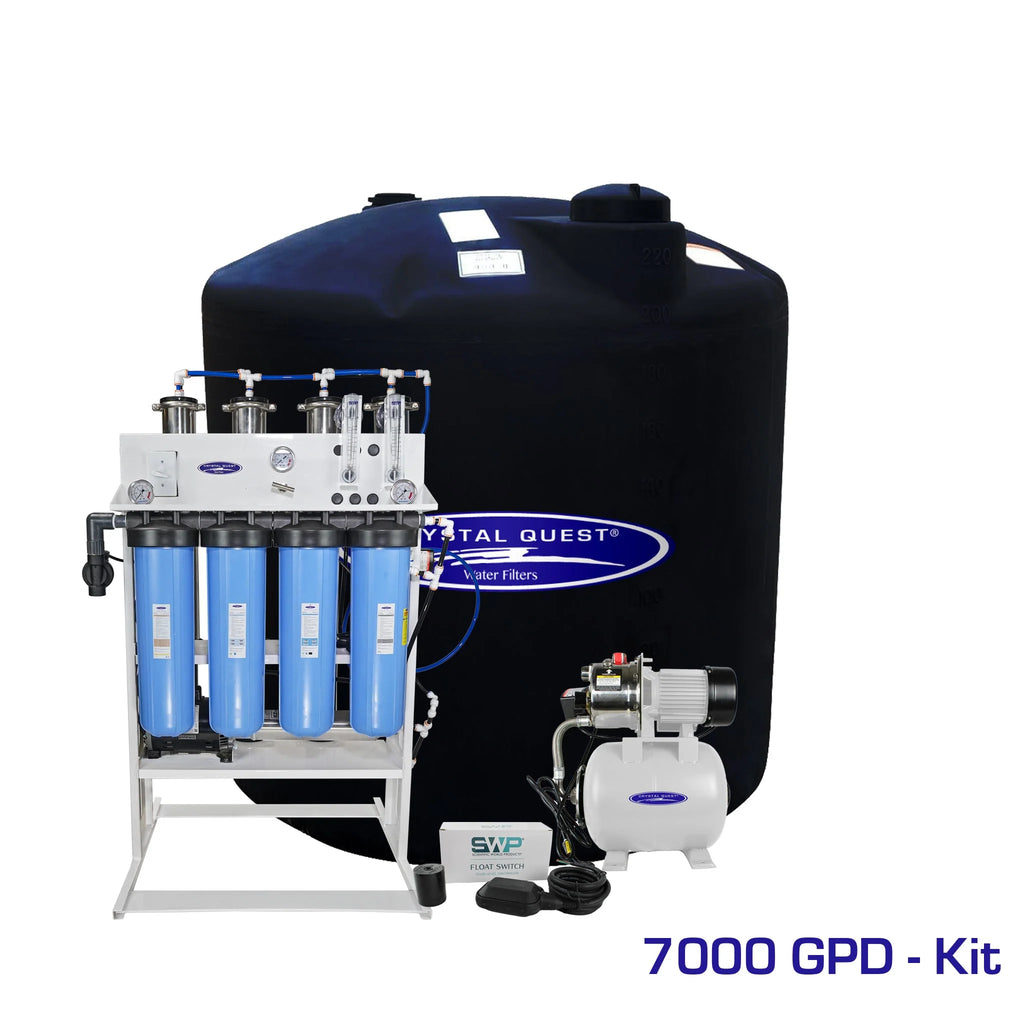

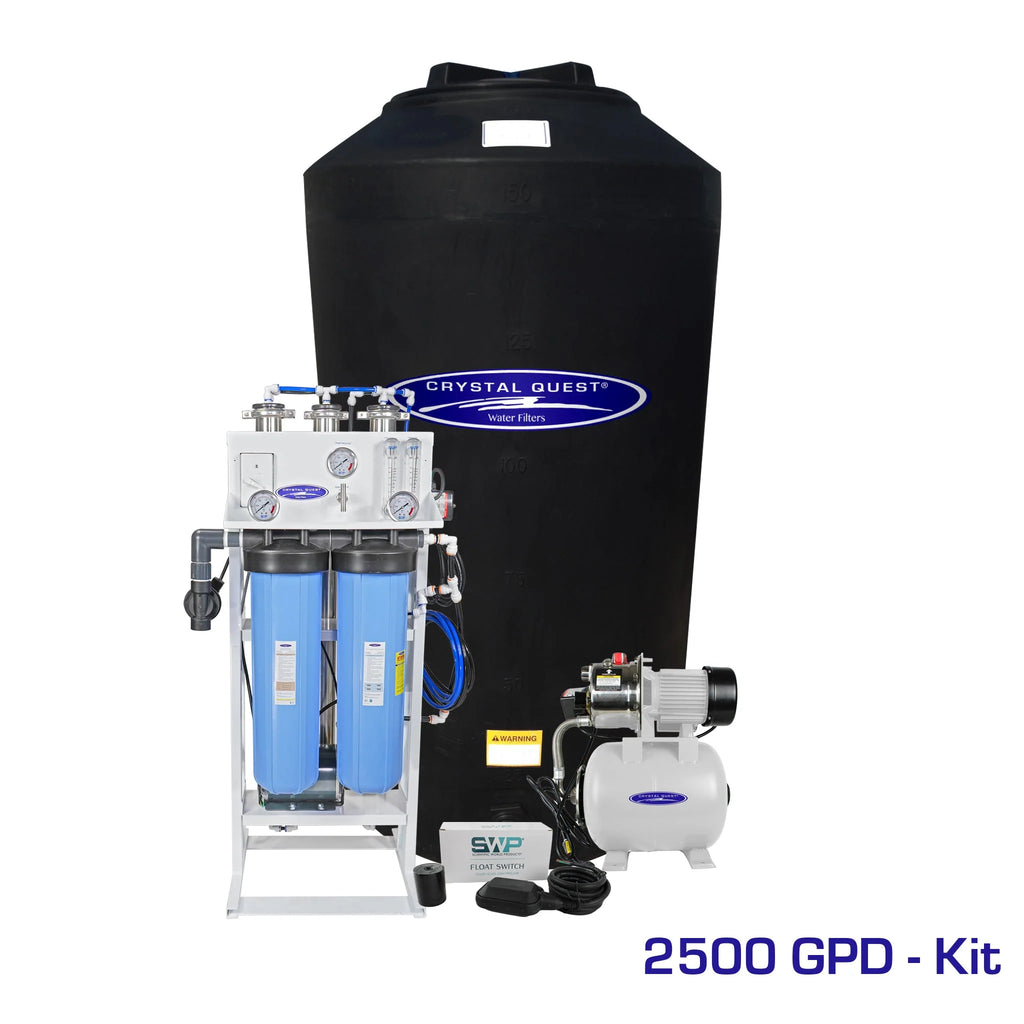

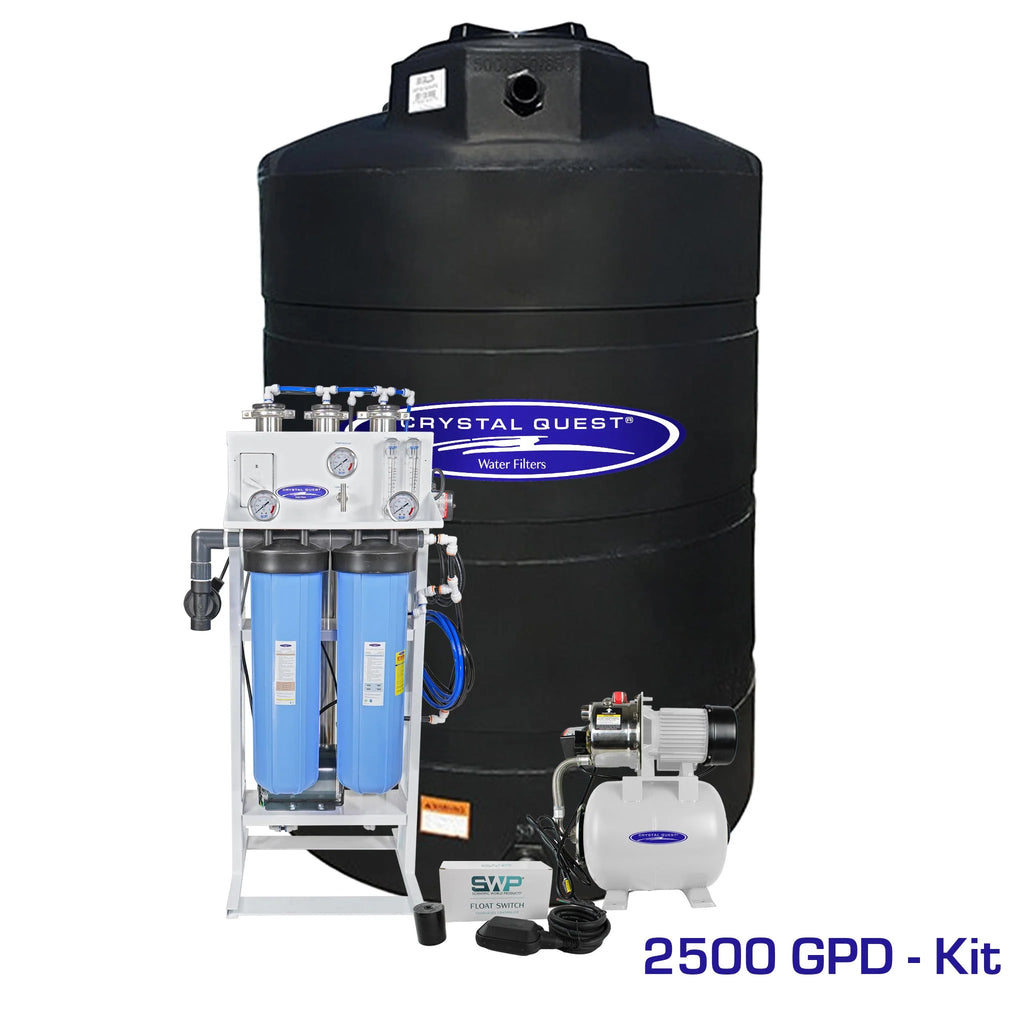

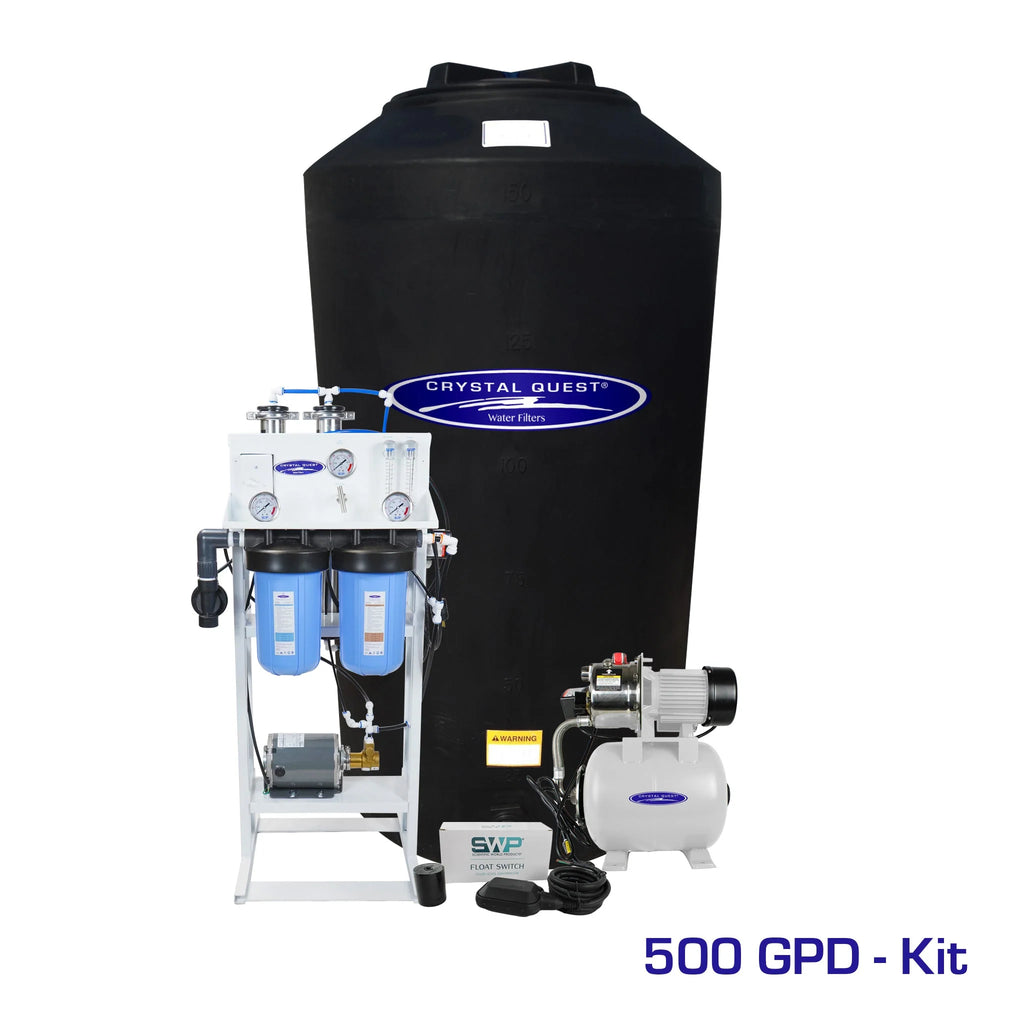

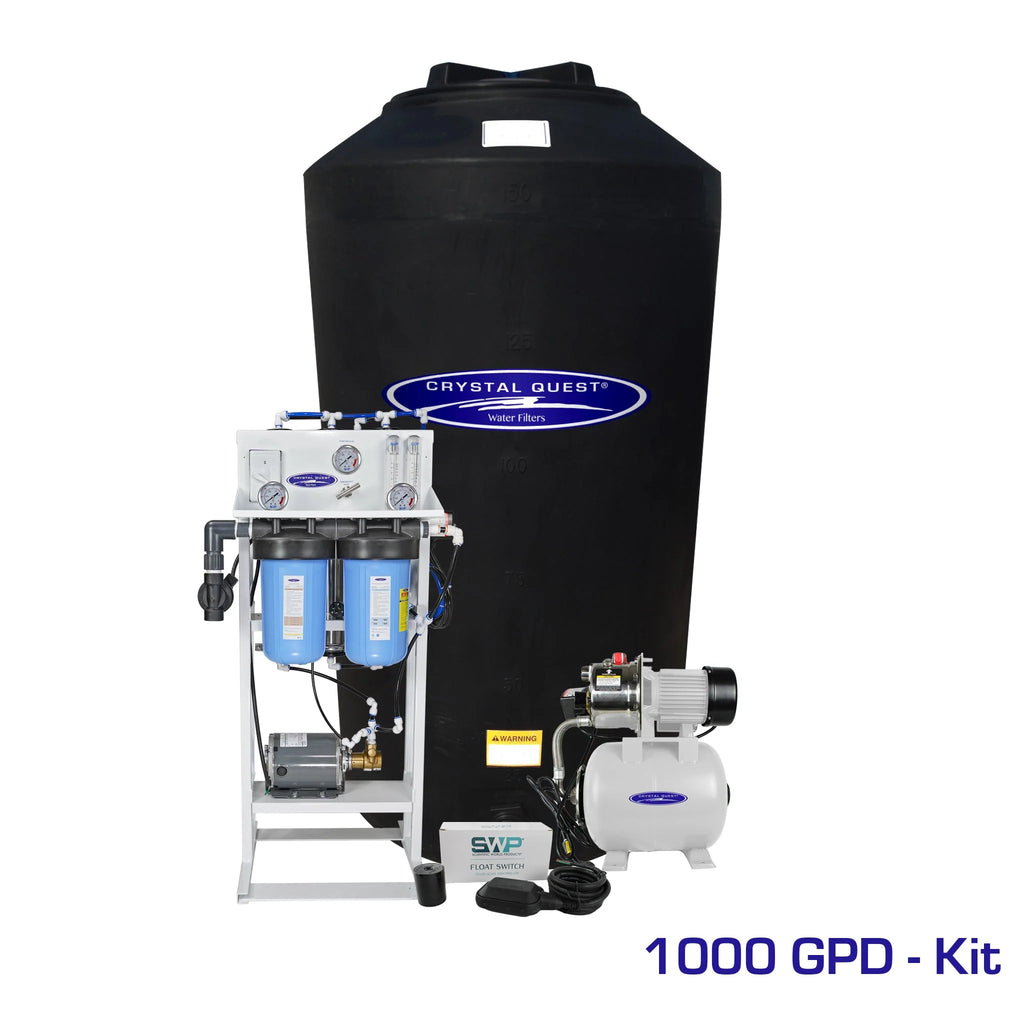

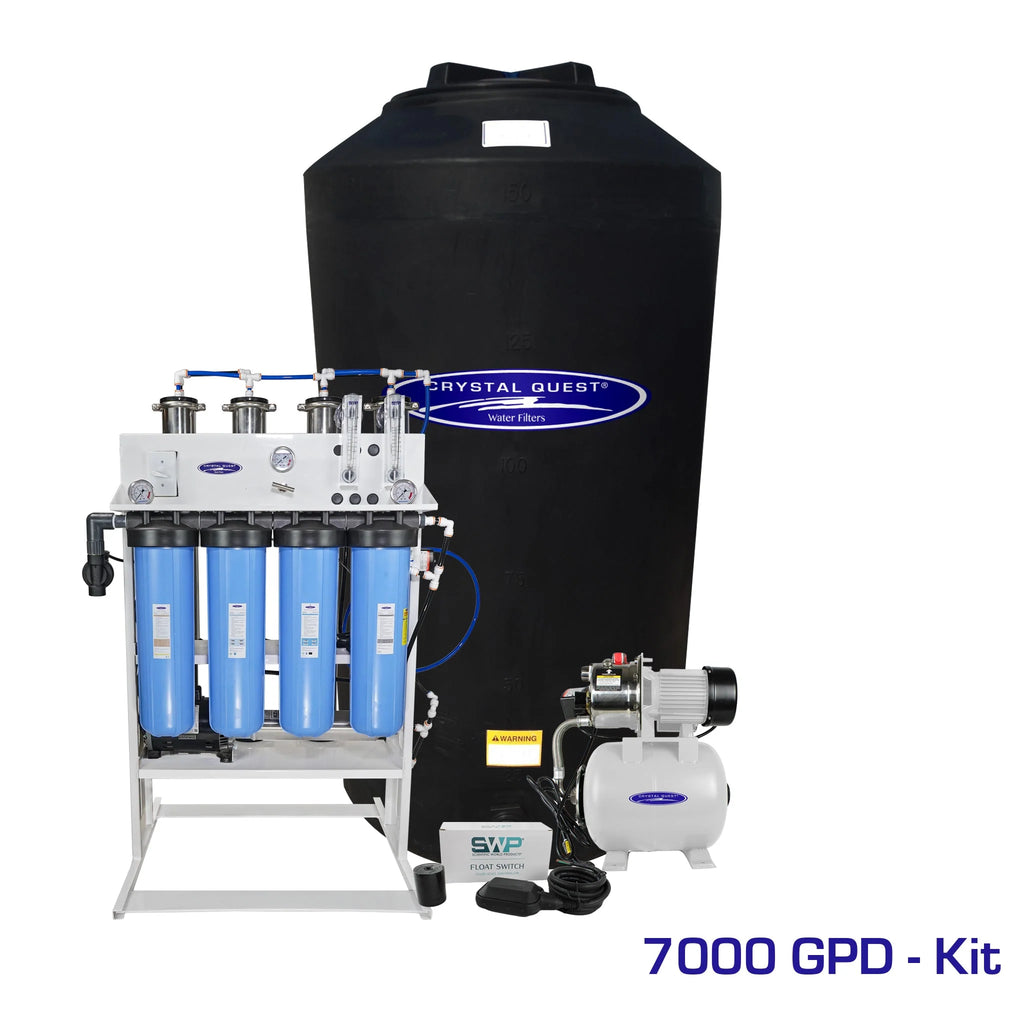

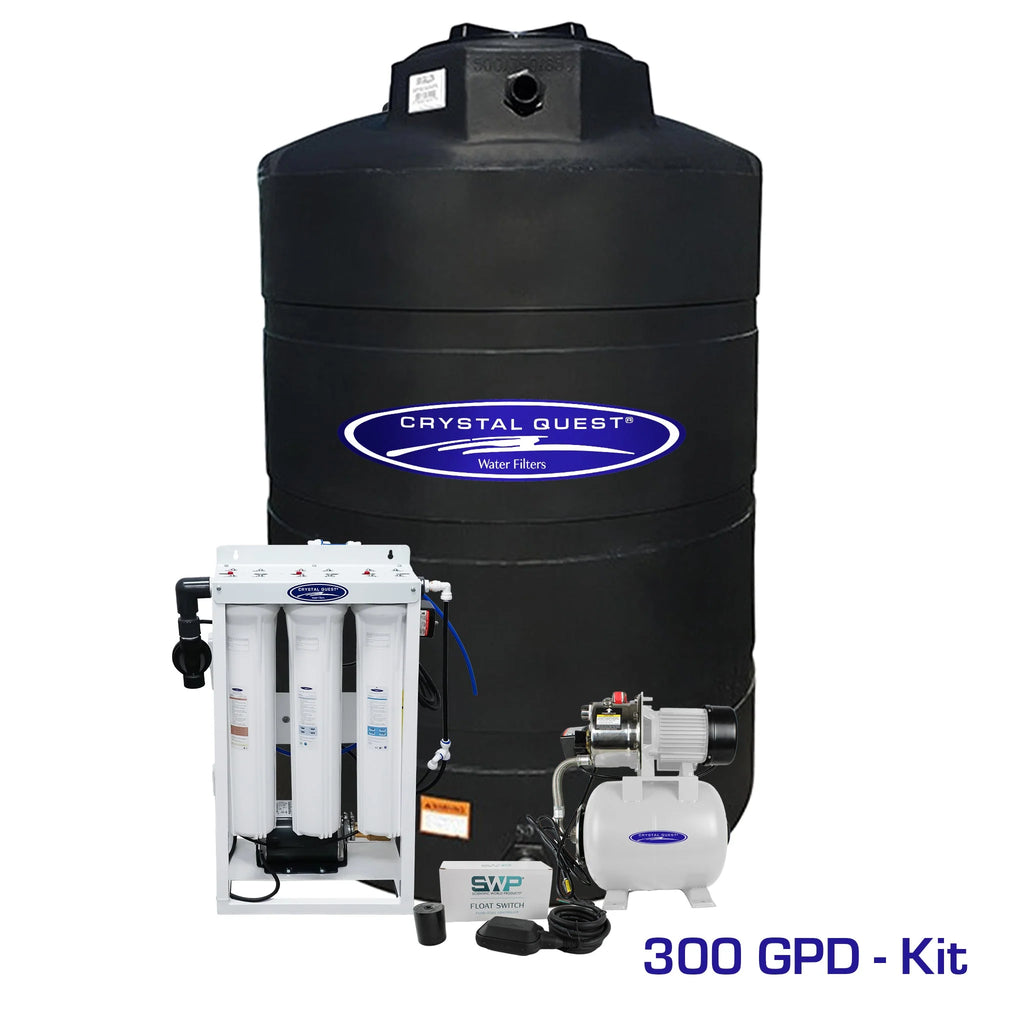

Storage Tank Kit Components
-

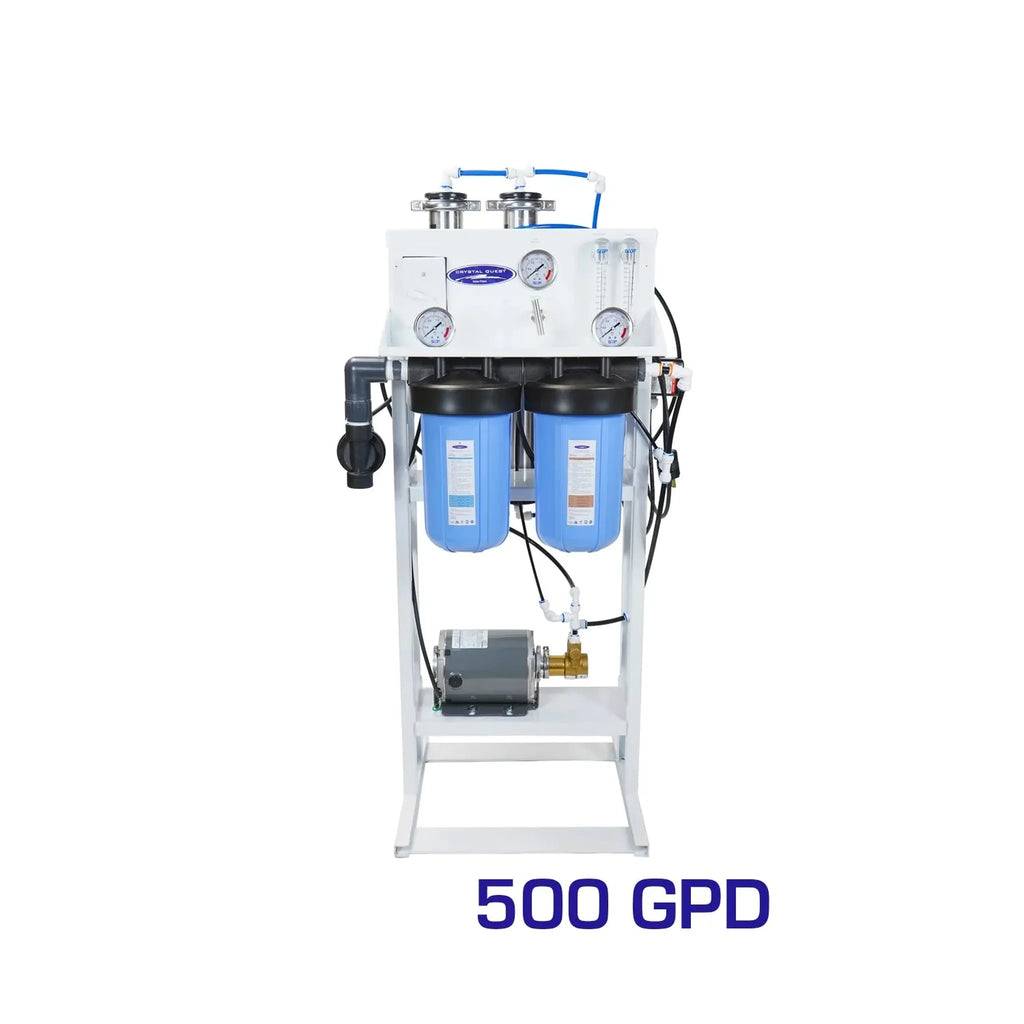

RO System
- Commercial-grade reverse osmosis system
- Available from 200–7,000 GPD
- Includes prefiltration to help extend reverse osmosis membrane life
-
Water Tank
- Atmospheric water storage tank
- Available in 165, 220, or 500 gallons
- Tank size depends on selected system, household needs, and available installation space
-
Pump
- Pumps stored water from the tank into the home as needed
- Supports whole-home delivery from the atmospheric storage tank
-
Float Switches
- Installed inside the water tank
- Control when the RO system turns on and off based on tank water level
Optional 12 GPM UV Water Sterilizer
- Optional upgrade for added treatment after reverse osmosis filtration
- Designed to help prevent microbiological contamination
- Adds another treatment layer after RO filtration
- UV-related claims apply only when this upgrade is selected
Optional Alkalizing Postfilter Options
- Optional alkalizing postfilter configurations are available
- Designed to enhance water alkalinity before water enters the home
-
Options may include:
- Natural alkalizing upgrades
- Mineralizing upgrades
- Oxidation whole house filter upgrades
Optional Remineralizer System
Because pure reverse osmosis water contains no minerals and can sometimes be slightly acidic, optional remineralizer systems are available for whole house RO applications.
The remineralizer system is designed based on gallons-per-day consumption.
Remineralizer System Functions
- Adds essential minerals back into purified water
- Adjusts pH
- Helps protect plumbing and fixtures
- Helps improve taste
- Supports overall water quality after RO filtration
Remineralizer Options by System Size
- 300–2,500 GPD: Single Big Blue Alkalizer / Remineralizer
- 4,000–5,000 GPD: Remineralizer System, 1.5 cubic feet
- 7,000 GPD: Remineralizer System, 2.0 cubic feet
pH and Taste Notes
- Customers who want highly alkaline water may choose a larger remineralizer system than the standard recommendation.
- Water with a pH below 6.4 is not recommended for human or livestock consumption.
- Using a remineralizer as post-treatment helps enhance pH and alkalinity.
- Remineralization may help prevent potential damage to plumbing and fixtures caused by acidic water.
- Highly alkaline water may have an unpleasant taste to some users.
- Highly alkaline taste may be described as plastic-like, metallic, chlorine-like, or fish-like.
Popular Upgrade Options
-
Stainless-Steel Rotary Vane Pump
- Provides longer lifespan
- Increases resistance to high TDS feed water
- Increases resistance to corrosive materials, including dosing chemicals and antiscalants
-
Concentrate Recycle Valve
- Helps increase RO system efficiency
- Recycles wastewater back into the feed stream
- Helps improve system recovery
-
SWP Digital Dual TDS Controller
- Allows simultaneous monitoring of feed TDS and permeate TDS
- Helps monitor RO system salt rejection
- Helps monitor membrane performance
-
SWP Digital TDS Controller
- Allows monitoring of either feed TDS or permeate TDS
-
SWP Digital TDS / Conductivity Controller
- Allows monitoring of RO permeate water TDS and conductivity
- Useful for evaluating overall system performance
-
Computer Controller with Feed Flush
- Provides pre-treatment lockout functionality
- Provides tank level input
- Includes LED status display indicator
-
S150 Computer Controller with Feed Flush
- Provides pre-treatment lockout functionality
- Provides tank level input
- Includes LED status display
- Includes alarm function
- Available only on 4,000 GPD systems and up
-
Chemical Pump Outlet
- Provides integrated power source with the RO system
- Used for connecting a chemical feed pump
-
Blending Valve
- Allows feed water to be mixed into final RO permeate water
- Helps achieve desired permeate TDS
-
Permeate Sample Port
- Allows evaluation of individual membrane performance
- Helps with troubleshooting and maintenance
-
Electrical Options
- 240V 50–60Hz
- 110V 50–60Hz
- Selection depends on voltage and hertz requirements
-
Single Wood Crate
- Available as an upgrade option for shipping or system handling needs
Contaminants / Water Quality Concerns Addressed
- Total dissolved solids, also known as TDS
- Dissolved salts, based on NaCl rejection range
- Feed water TDS monitoring
- Permeate TDS monitoring
- Membrane performance monitoring
- Microbiological contamination concerns, with optional UV Water Sterilizer
- Low mineral content after RO treatment, with optional remineralizer
- Low pH / acidic RO water concerns, with optional remineralizer
- Plumbing and fixture concerns from acidic water, with optional remineralizer
Important System Notes
- All Crystal Quest Whole House Reverse Osmosis Systems are rated using 77°F water.
- Systems are rated using total dissolved solids, or TDS, under 2,000.
- Review the specifications for the exact system before ordering.
- If water conditions fall outside these rating constraints, contact Healthy Hydro Supply Co for system recommendations before purchase.
- All systems come standard as 110V unless otherwise requested.
- Refer to the operating manual of each specific system for exact values.
Specs
Operating Specs
| Name | Value |
| Weight | 50–265 lbs |
| Motor | 0–1.5 hp |
| Voltage | 110V / 220V* |
| Hertz | 50 or 60 |
| Feed Connection | 3/8" or 1" |
| Product Connection | 3/8" or 1" |
| Waste Connection | 1/4", 3/8", or 1" |
| Minimum Feed Pressure | 45 psi |
| Minimum NaCl Rejection | 96% |
| Maximum NaCl Rejection | 98.5% |
| Minimum Feed | 1–10 GPM |
| Maximum Hardness | 15 grains per gallon |
| Maximum TDS | 1000–2000 ppm |
| Operating Pressure | 50–150 psi |
| pH Range | 3–11 |
*Please refer to the operating manual of each specific system for exact values. All systems come standard as 110V unless otherwise requested.

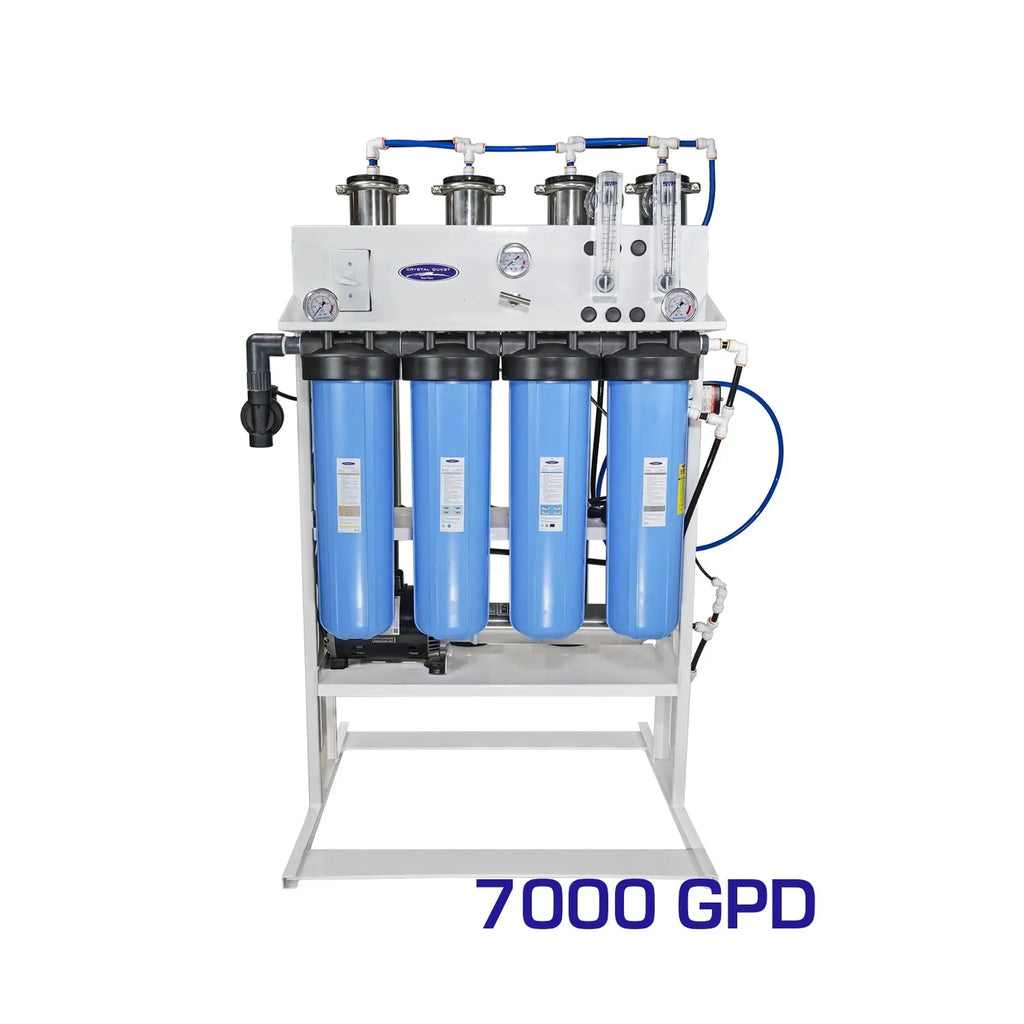

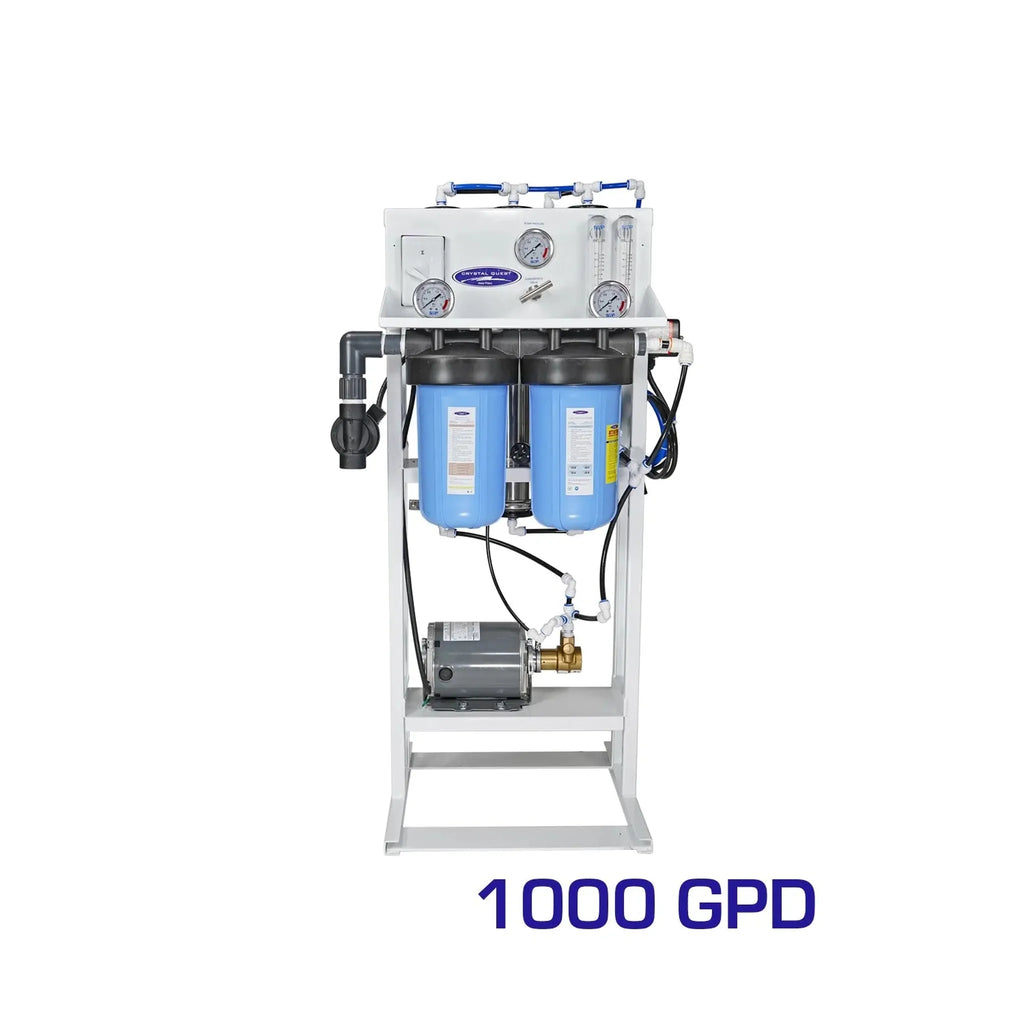

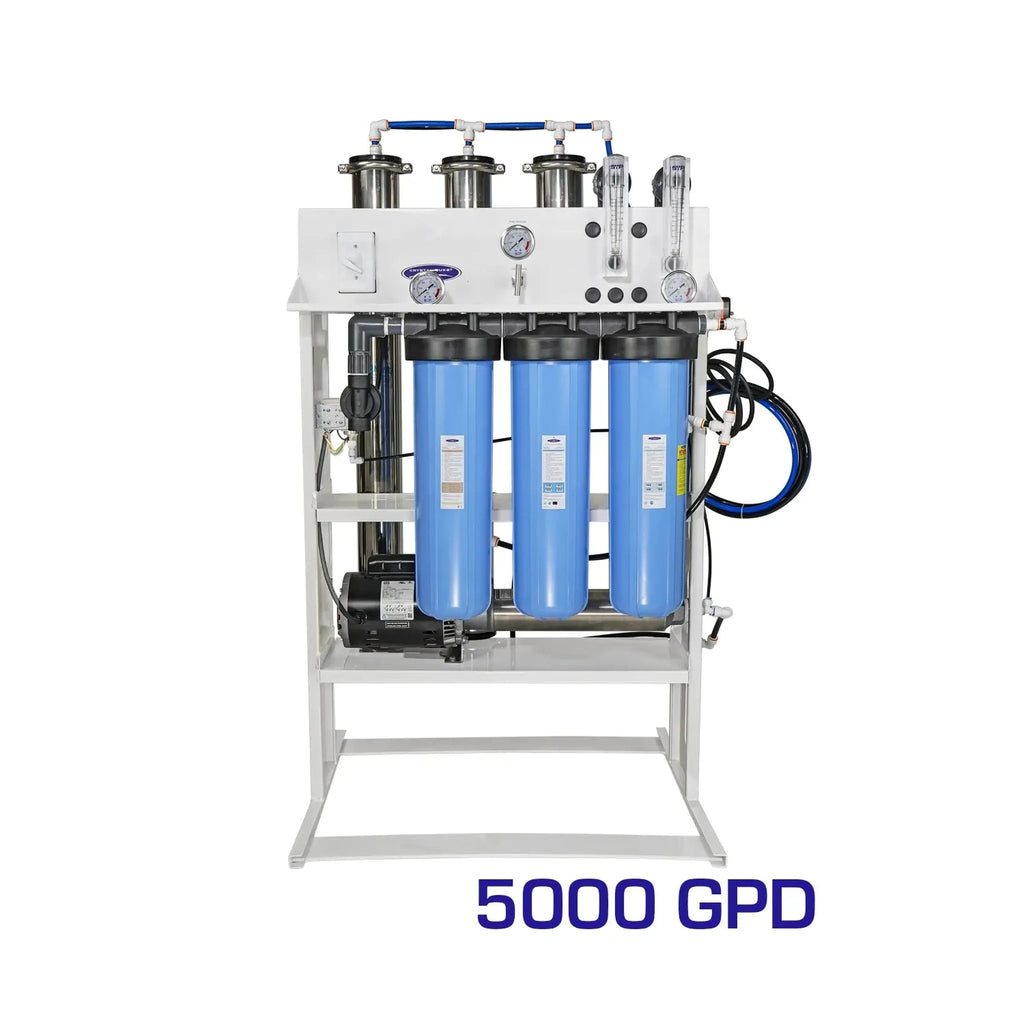

System Dimensions
| Residential RO System | Dimensions |
| 300 GPD | 17" x 23" x 35" |
| 400 GPD | 17" x 23" x 35" |
| 500 GPD | 18" x 24" x 49" |

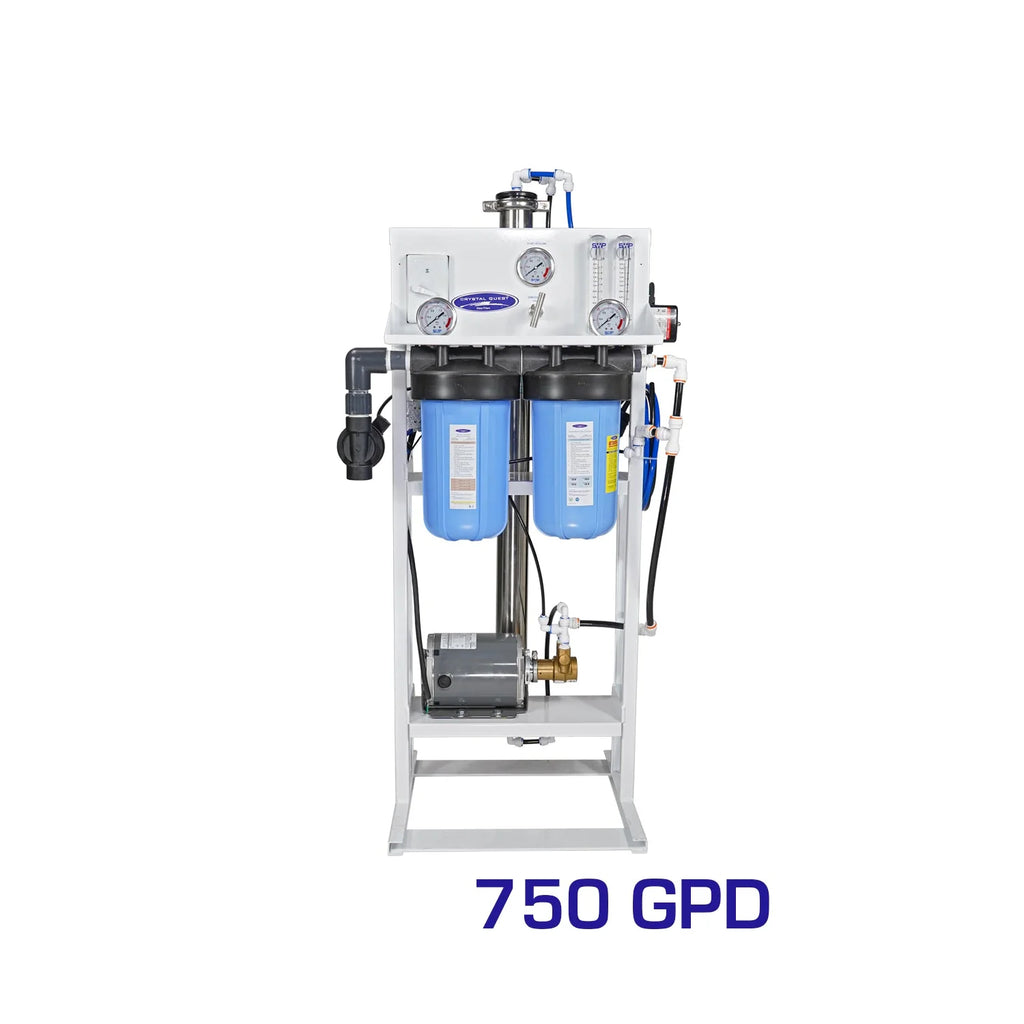

| 750 GPD | 18" x 24" x 49" |
| 1,000 GPD | 18" x 24" x 49" |
| 1,500 GPD | 18" x 24" x 49" |

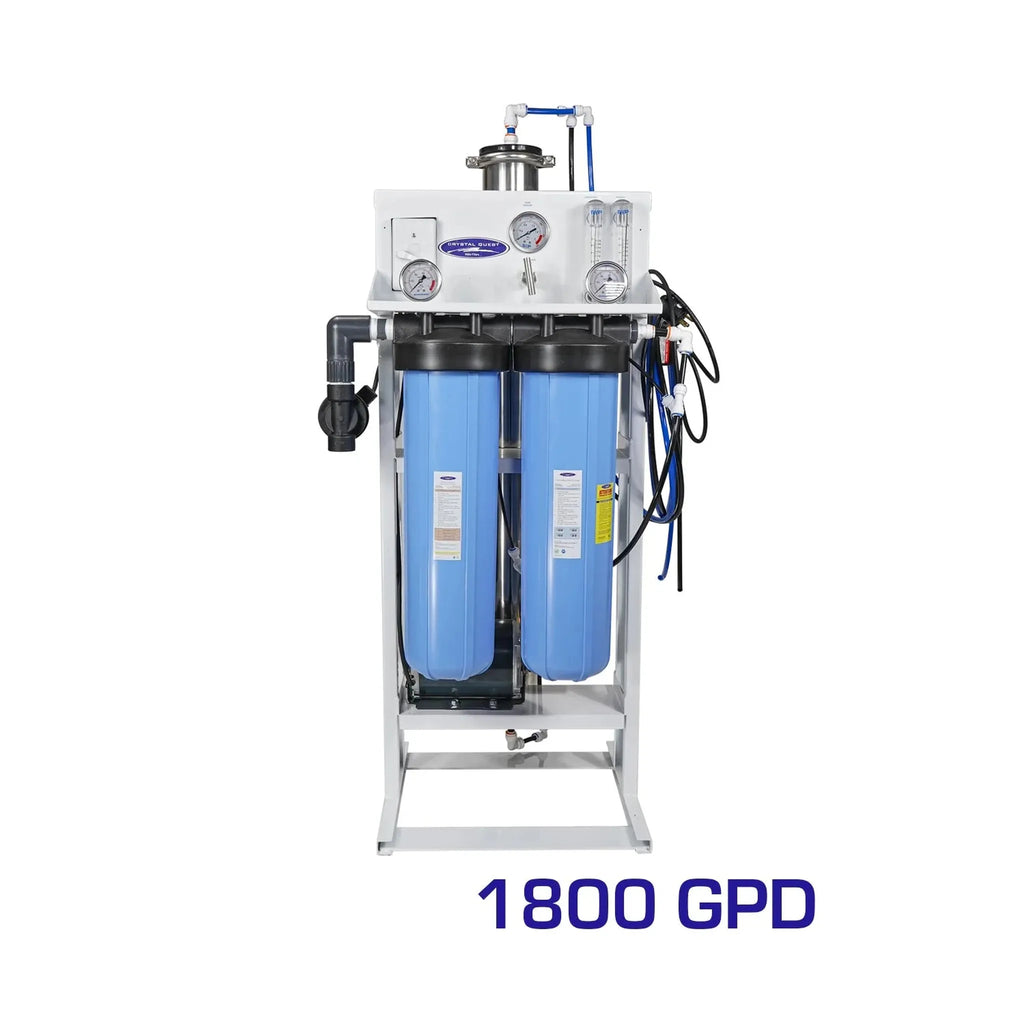

| 1,800 GPD | 20" x 24" x 51" |
| 2,500 GPD | 18" x 24" x 49" |

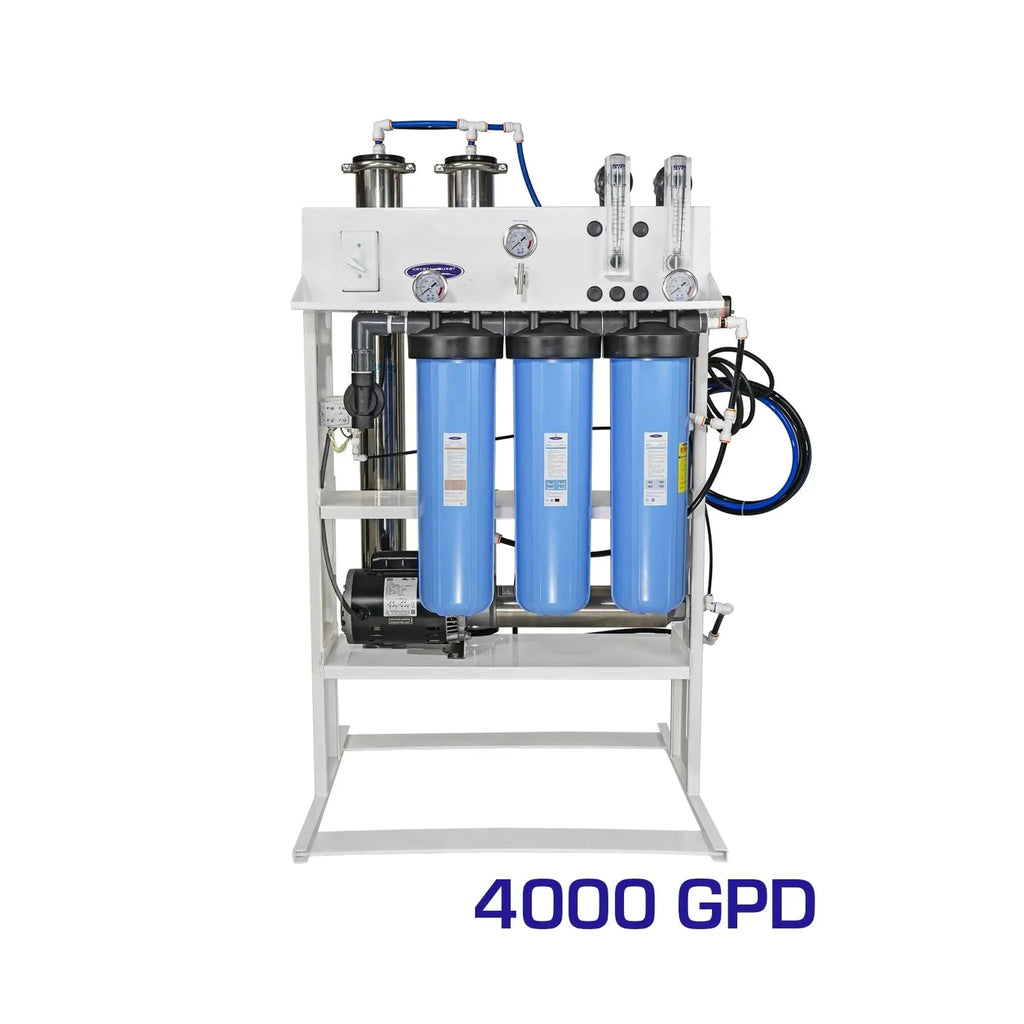

| 4,000 GPD | 30" x 36" x 59" |
| 5,000 GPD | 30" x 36" x 59" |
| 7,000 GPD | 30" x 36" x 59" |
Storage Tank Sizes
| System Size | Tank Size |
| 200–300 GPD | 165 gallons, 31" D x 56" H |
| 500–2,500 GPD | 220 gallons, 42" D x 44" H |
| 4,000–7,000 GPD | 500 gallons, 48" D x 73" H |
*When considering the size of the tank, measure the door opening before installation.
Home Water Usage Guide
| Flow Rate / System Size | Bathrooms |
| 200–300 GPD | 1–1.5 bathrooms |
| 500–2,500 GPD | 1–4 bathrooms |
| 4,000–7,000 GPD | 5+ bathrooms |
RO Capacity Range
- 200 GPD
- 300 GPD
- 400 GPD
- 500 GPD
- 750 GPD
- 1,000 GPD
- 1,500 GPD
- 1,800 GPD
- 2,500 GPD
- 4,000 GPD
- 5,000 GPD
- 7,000 GPD
Primary Treatment Focus
- Whole house reverse osmosis
- Purified water throughout the home
- Commercial-grade RO technology
- High-capacity residential RO
- TDS reduction support
- Salt rejection monitoring
- Membrane performance monitoring
- Whole-home storage tank delivery
- Optional UV post-treatment
- Optional remineralization
- Optional alkalinity enhancement
- Optional concentrate recycle support
- Optional TDS / conductivity monitoring
- Optional blending valve support
Install & Parts
Crystal Quest Whole House Reverse Osmosis Systems should be selected based on household water demand, GPD capacity, storage tank size, available installation space, feed water quality, TDS level, pressure requirements, and optional post-treatment needs.
System Design Should Be Based On
- Household water demand
- Number of bathrooms
- Desired GPD capacity
- Available installation space
- Door opening size for storage tank placement
- Feed water pressure
- Feed water TDS
- Feed water hardness
- Feed water pH
- Voltage requirement
- Hertz requirement
- Storage tank size
- Pump requirement
- Float switch setup
- RO membrane configuration
- Prefilter and membrane maintenance schedule
- Optional UV Water Sterilizer selection
- Optional alkalizing postfilter selection
- Optional remineralizer selection
- Optional TDS controller selection
- Optional concentrate recycle valve selection
- Optional blending valve selection
- Optional wood crate shipping selection
Storage Tank Kit Components
- Commercial-grade RO system
- Atmospheric water storage tank
- Pump
- Float switches
Storage Tank Notes
- 165-gallon tank available for 200–300 GPD systems
- 220-gallon tank available for 500–2,500 GPD systems
- 500-gallon tank available for 4,000–7,000 GPD systems
- Additional shipping charges may apply for orders with 500-gallon storage tanks
- Measure the door opening before installation when selecting tank size
Replacement Membranes & Cartridges
Installation Instructions / Documents
- 200-400 GPD Reverse Osmosis Manual
- 500-2500 GPD Reverse Osmosis Manual
- 4000-7000 GPD Reverse Osmosis Manual
- 200 GPD Reverse Osmosis Schematic
- 500 GPD Reverse Osmosis Schematic
- 1500 GPD Reverse Osmosis Schematic
- 2500 GPD Reverse Osmosis Schematic
- 4000 GPD Reverse Osmosis Schematic
- 5000 GPD Reverse Osmosis Schematic
- 7000 GPD Reverse Osmosis Schematic
- 2500 GPD Softener RO Schematic
- 1500 GPD RO Iron UV Softener Schematic
- 500 GPD RO Tank UV Softener Schematic
- 4000 GPD RO Tank Schemati
- 5000 GPD RO Softener CN Schematic
- 7000 GPD RO Softener Schematic
- SWP Float Switch Wiring Diagram
- SWP Float Switch Manual
- Up & Down Float Switch Info
- System Key
Important Notes
- No warranty terms were provided in the source product content.
- System life depends on proper maintenance and regular prefilter and membrane changes.
- All systems are rated using 77°F water and TDS under 2,000.
- Review exact specifications for the specific system before ordering.
- If water conditions fall outside the rating constraints, contact Healthy Hydro Supply Co for system recommendations before purchase.
- All systems come standard as 110V unless otherwise requested.
- Additional shipping charges may apply for orders with 500-gallon storage tanks.
- Measure the door opening before installation when selecting storage tank size.
- Optional upgrade benefits apply only when those upgrades are selected.
- UV treatment claims apply only when the optional 12 GPM UV Water Sterilizer is selected.
- Remineralizer benefits apply only when a remineralizer system is selected.
- Highly alkaline water may have an unpleasant taste to some users.
FAQ & Support
What is the Crystal Quest Whole House Reverse Osmosis System?
The Crystal Quest Whole House Reverse Osmosis System is a whole house RO water filtration system designed to deliver purified water throughout the entire home.
What is this system best for?
It is best for homeowners who want a high level of water purification throughout the home instead of only at one faucet.
What GPD capacities are available?
Commercial-grade RO systems are available from 200 to 7,000 gallons per day, also known as GPD.
How many flow rates are available?
There are 9 different flow rates available.
How long is the system designed to last?
With proper maintenance and regular prefilter and membrane changes, the system is designed to last approximately 15 to 20 years.
Is the system tested before shipping?
Yes. Every system is tested in-house before shipping and is factory tested and preserved.
Does the system arrive ready for installation?
The source content states that each system arrives operational and requires minimal plumbing.
What does the storage tank kit include?
The storage tank kit includes the RO system, atmospheric water storage tank, pump, and float switches.
What storage tank sizes are available?
Storage tank options include 165 gallons, 220 gallons, and 500 gallons, depending on the system size, household needs, and available installation space.
What does the pump do?
The pump moves purified water from the atmospheric storage tank into the household plumbing system as needed.
What do the float switches do?
Float switches inside the water tank regulate when the RO system turns on and off based on the tank water level.
What is the minimum feed pressure?
The minimum feed pressure is 45 psi.
What is the operating pressure range?
The operating pressure range is 50 to 150 psi.
What is the NaCl rejection range?
The minimum NaCl rejection is 96%, and the maximum NaCl rejection is 98.5%.
What is the maximum hardness?
The maximum hardness is 15 grains per gallon.
What is the maximum TDS range?
The maximum TDS range is 1000 to 2000 ppm, depending on the exact system.
What is the pH range?
The pH range is 3 to 11.
Are all systems 110V?
All systems come standard as 110V unless otherwise requested.
What does the optional UV Water Sterilizer do?
The optional 12 GPM UV Water Sterilizer is designed to help prevent microbiological contamination and add another layer of treatment after reverse osmosis filtration.
Why would I need a remineralizer?
Pure reverse osmosis water contains no minerals and can sometimes be slightly acidic. A remineralizer adds minerals back into purified water, adjusts pH, helps protect plumbing and fixtures, and may improve taste.
What remineralizer size do I need?
Remineralizer recommendations are based on system size:
- 300–2,500 GPD: Single Big Blue Alkalizer / Remineralizer
- 4,000–5,000 GPD: Remineralizer System, 1.5 cubic feet
- 7,000 GPD: Remineralizer System, 2.0 cubic feet
Can I choose a larger remineralizer?
Yes. Customers who want highly alkaline water may choose a larger remineralizer system than the standard recommendation.
Why does tank size matter for installation?
Storage tanks can be large, especially the 500-gallon option. Measure the door opening before installation to confirm the tank can fit into the installation area.
Do 500-gallon storage tanks have extra shipping charges?
Additional shipping charges may apply for orders with 500-gallon storage tanks.
Does this system guarantee removal of specific contaminants?
No universal contaminant-removal guarantee should be implied. The page should stay limited to the listed performance facts, operating specifications, selected system configuration, and supplier documentation.
