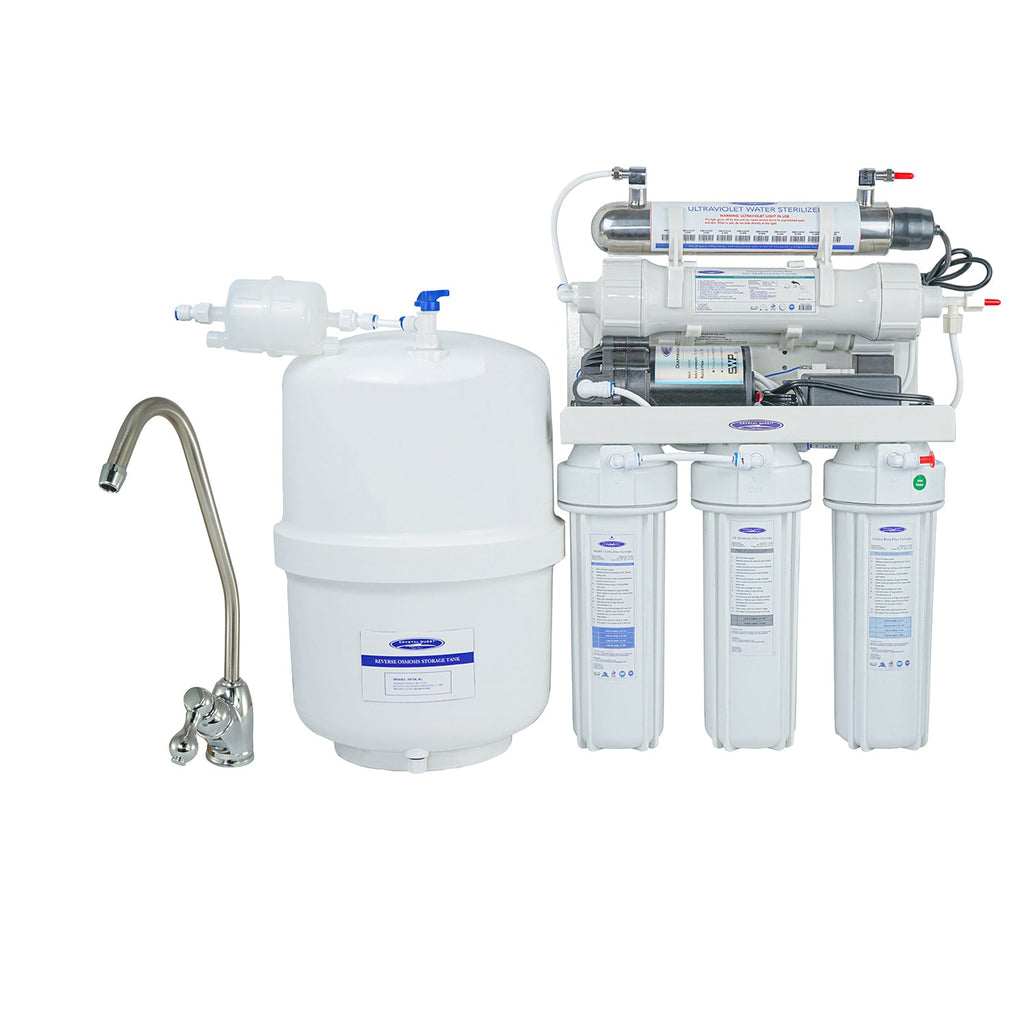

Crystal Quest 4000mp 17 stage reverse osmosis water filtration system with multiple filters and a faucet on a white background

Crustal Quest Thunder Ultrafiltration/Reverse Osmosis Under Sink Water Filter | 4000MP | 17 Stages of Filtration

$740.61
Sale price  $740.61 Regular price
Skip to product information

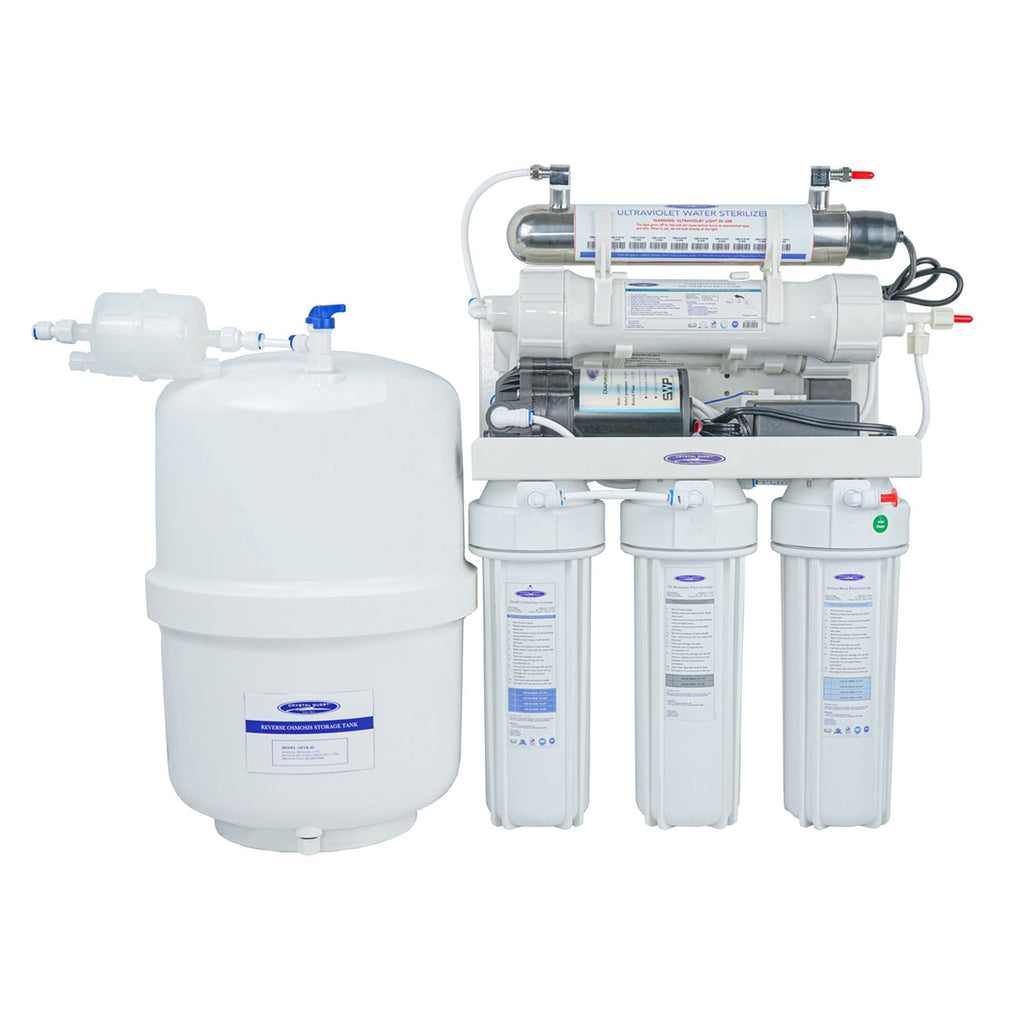

Crystal Quest 4000mp 17 stage reverse osmosis water filtration system with multiple filters and a faucet on a white background

Crustal Quest Thunder Ultrafiltration/Reverse Osmosis Under Sink Water Filter | 4000MP | 17 Stages of Filtration

$740.61
Sale price  $740.61 Regular price

Overview

Crystal Quest Thunder Ultrafiltration / Reverse Osmosis Under Sink Water Filter | 4000MP | 17 Stages of Filtration available from Healthy Hydro Supply Co is an under sink drinking water filtration system designed for point-of-use water treatment.

This system combines reverse osmosis, ultrafiltration, ultraviolet treatment, pressure pump support, solid carbon filtration, granulated activated carbon, ion exchange resin, Eagle Redox Alloy® media, one-micron filtration pads, and a 6-stage post-membrane filtration cartridge.

Product Information

  • Product Name: Crystal Quest Thunder Ultrafiltration / Reverse Osmosis Under Sink Water Filter
  • Model / Identifier: 4000MP
  • Brand: Crystal Quest
  • Sold By: Healthy Hydro Supply Co
  • System Type: Under sink ultrafiltration / reverse osmosis water filter system
  • Filtration Stages: 17 stages of filtration
  • Primary Use: Point-of-use drinking water filtration
  • Production Rating: 50 gallons per day
  • Series Type: M Series with P Model pressure pump feature
  • Ultrafiltration: Listed feature
  • Ultraviolet: Listed feature
  • Pressure Pump: Listed feature
  • M Series Cartridge: 6-stage filtration cartridge
  • Primary Technologies: Reverse osmosis, ultrafiltration, ultraviolet, pressure pump, solid carbon, GAC coconut shell carbon, ion exchange resin, Eagle Redox Alloy®, ERA-6500®, ERA-9500®, ceramic ball resin, and one-micron filter pads
  • Standard Electrical: 110v electrical outlet
  • Optional Electrical: 220v available upon request
  • Recommended PSI Range: 35–60 PSI
  • Optimum PSI: 60 PSI
  • Unit Dimensions: 16"L x 8"W x 27"H
  • Holding Tank Dimensions: 18"H x 11"D
  • Holding Tank: Crystal Quest® 3.2 gallon stainless steel pressurized holding tank with polypropylene inner liner and 2.0 gallon capacity
  • Leak Detector / Flood-Prevention Valve: Optional, but highly recommended to help reduce property-damage risk
  • Product Manual: Undersink-RO-Manual

Complete Installation Kit Includes

  • European lead-free long-reach designer faucet
  • Crystal Quest® 3.2 gallon stainless steel pressurized holding tank
  • Polypropylene inner liner
  • 2.0 gallon tank capacity
  • Interconnecting color-coded tubing
  • Filter cartridges
  • Ultrafiltration membrane
  • RO membrane
  • Wrenches
  • Installation hardware

Description

The Crystal Quest Thunder Ultrafiltration / Reverse Osmosis Under Sink Water Filter | 4000MP is a 17-stage under sink drinking water filtration system designed for point-of-use applications.

Water travels through multiple filtration technologies, including a 5 micron solid carbon cartridge, 0.020 micron ultrafiltration membrane, one-micron filter pads, granulated activated carbon, ion exchange resin, Eagle Redox Alloy® media, a Crystal Quest® reverse osmosis membrane, a dedicated ultraviolet water sterilizer stage, a 6-stage M Series post-membrane cartridge, and a final 0.20 micron ultrafiltration membrane.

The 4000MP also includes a pressure pump, making it a stronger fit for applications where water pressure may be low or where pump support is preferred for reverse osmosis production.

The ultraviolet stage uses axial flow reactors manufactured in 304 stainless steel and hard glass germicidal lamps. The source content describes this UV stage for water applications requiring a 99.99% reduction of bacteria, virus, and protozoa without adding harmful chemicals to drinking water.

The system is rated at 50 gallons per day. Influent water pressure directly affects gallons-per-day production. The RO system is designed to work within a 35–60 PSI pressure range, with 60 PSI listed as optimum.

The system comes standard for a 110v electrical outlet, with 220v available upon request.

A leak detector / flood-prevention valve is optional with purchase, but it is highly recommended to help reduce the risk of property damage. Flood damage can occur due to unpredictable circumstances, including installation errors, tubing issues, valve issues, connection failures, or plumbing conditions.


Benefits

The Crystal Quest Thunder 4000MP under sink RO system is designed for customers who want a multi-stage drinking water filtration system with ultrafiltration, reverse osmosis, ultraviolet treatment, pressure pump support, carbon filtration, ion exchange, redox media, and post-membrane polishing.

Key Benefits

  • Provides 17 stages of filtration
  • Designed for under sink drinking water filtration
  • Supports point-of-use water treatment
  • Rated at 50 gallons per day
  • Includes pressure pump
  • Includes reverse osmosis membrane
  • Includes ultrafiltration membrane
  • Includes ultraviolet water sterilizer stage
  • Includes 304 stainless steel UV axial flow reactor design
  • Includes hard glass germicidal lamp UV treatment
  • Includes 5 micron solid carbon filtration
  • Includes granulated activated carbon filtration
  • Includes ion exchange resin
  • Includes Eagle Redox Alloy® media
  • Includes ERA-6500®
  • Includes ERA-9500®
  • Includes ceramic ball resin
  • Includes one-micron filtration pads
  • Includes M Series 6-stage post-membrane filtration cartridge
  • Includes complete installation kit
  • Includes European lead-free long-reach designer faucet
  • Includes stainless steel pressurized holding tank
  • Includes color-coded tubing
  • Includes filter cartridges
  • Includes wrenches and installation hardware
  • Optional leak detector / flood-prevention valve is highly recommended
  • Optional exchange filter cartridges are available for fluoride
  • Optional exchange filter cartridges are available for nitrates
  • Optional exchange filter cartridges are available for arsenic
  • Optional exchange filter cartridges are available for other water contaminants
  • 75 GPD RO membrane optional
  • 100 GPD RO membrane optional
  • Remineralizer cartridge optional
  • Standard 110v electrical outlet
  • 220v available upon request

Best For

  • Under sink reverse osmosis filtration
  • Point-of-use drinking water filtration
  • Homes needing multi-stage filtration
  • Customers wanting ultrafiltration and reverse osmosis together
  • Customers wanting ultraviolet treatment included as a dedicated stage
  • Customers wanting pressure pump support
  • Customers with low water pressure conditions
  • Customers with high TDS concerns where pump support may be preferred
  • Customers wanting M Series post-membrane filtration
  • Customers wanting GAC coconut shell carbon filtration
  • Customers wanting redox media support
  • Customers wanting ion exchange resin support
  • Customers wanting a complete installation kit
  • Customers with 35–60 PSI water pressure
  • Customers with optimum pressure near 60 PSI
  • Applications needing a pressurized holding tank
  • Applications needing optional specialty cartridges for fluoride, nitrate, arsenic, or remineralization

Performance

Water travels through 17 stages of filtration designed to address different water quality concerns through carbon filtration, ultrafiltration, one-micron filtration, ion exchange, redox media, reverse osmosis, ultraviolet treatment, pressure pump support, and post-membrane filtration.

Stage 1 — 5 Micron Solid Carbon Cartridge

  • Water travels through a 5 micron solid carbon cartridge
  • Supports reduction of volatile organic carbon compounds, also called VOCs
  • Supports reduction of insecticides
  • Supports reduction of pesticides
  • Supports reduction of industrial solvents
  • Traps particles larger than 5 microns
  • Traps sediment
  • Traps silt
  • Traps sand
  • Traps dirt
  • Helps extend the life of the system

Stage 2 — 0.020 Micron Ultrafiltration Membrane

  • Water passes through a 0.020 micron ultrafiltration membrane
  • Ultrafiltration is used for production of high-purity water
  • Supports removal of colloids
  • Supports removal of proteins
  • Supports removal of bacteria
  • Supports removal of viruses
  • Supports removal of parasites
  • Supports removal of protozoa
  • Supports removal of pyrogens, including gram-negative bacterial endotoxins
  • Supports removal of organic molecules larger than 0.020 micron
  • Supports reduction of many contaminants larger than the membrane rating

Stage 3 — Pre One-Micron Filter Pads

  • Water flows through pre one-micron filter pads
  • One micron equals 1/25,000th of an inch
  • Removes suspended particles
  • Supports reduction of silt
  • Supports reduction of sediment
  • Supports reduction of cysts, including Giardia and Cryptosporidium
  • Supports reduction of sand
  • Supports reduction of rust
  • Supports reduction of dirt
  • Supports reduction of other undissolved matter

Stage 4 — Granulated Activated Carbon

  • Water passes through granulated activated carbon, also called GAC
  • GAC is widely used as an adsorbent for many organic contaminants
  • Supports reduction of chlorine
  • Supports reduction of THMs
  • Supports reduction of benzene
  • Supports reduction of pesticides
  • Supports reduction of herbicides
  • Supports reduction of insecticides
  • Supports reduction of volatile organic compounds
  • Supports reduction of PCBs
  • Supports reduction of MTBE
  • Supports reduction of bad taste
  • Supports reduction of odors

Stage 5 — Ion Exchange Resin

  • Water flows through ion exchange resin
  • Supports reduction of heavy metals
  • Supports reduction of lead
  • Supports reduction of copper
  • Supports reduction of aluminum
  • Supports reduction of water hardness

Stages 6 & 7 — Eagle Redox Alloy® Media

  • Water flows through two beds of Eagle Redox Alloy® media
  • Media uses an oxidation / reduction process
  • Media is made from a high-purity alloy blend of copper and zinc
  • Media uses electrochemical oxidation / reduction and adsorption action
  • Supports reduction or removal of many unwanted contaminants from water
  • Chlorine is oxidized by the media
  • Iron is oxidized into insoluble matter and attaches to the media surface
  • Hydrogen sulfide is oxidized into insoluble matter and attaches to the media surface
  • Heavy metals may be attracted to the surface of the media
  • Supports reduction of lead
  • Supports reduction of mercury
  • Supports reduction of copper
  • Supports reduction of nickel
  • Supports reduction of chromium
  • Supports reduction of cadmium
  • Supports reduction of aluminum
  • Source content states the media inhibits bacterial growth throughout the unit

Stage 8 — One-Micron Filtration Pad

  • Water flows through another one-micron filtration pad
  • Supports further reduction of undesirable particles
  • Helps support broad reduction of listed particles before later filtration stages

Stage 9 — Crystal Quest® Reverse Osmosis Membrane

  • Water passes through a Crystal Quest® reverse osmosis membrane
  • RO membrane filters particles as small as 1/10,000 of a micron
  • Supports reduction of inorganic chemicals
  • Supports reduction of salts
  • Supports reduction of metals
  • Supports reduction of minerals
  • Supports reduction of most microorganisms listed in the source content
  • Supports reduction of Cryptosporidium
  • Supports reduction of Giardia
  • Supports reduction of many inorganic contaminants

Stages 10 & 15 — One-Micron Filter Pads

  • Water flows through additional one-micron filter pads
  • One micron equals 1/25,000th of an inch
  • Supports reduction of suspended particles
  • Supports reduction of silt
  • Supports reduction of sediment
  • Supports reduction of cysts, including Giardia and Cryptosporidium
  • Supports reduction of sand
  • Supports reduction of rust
  • Supports reduction of dirt
  • Supports reduction of other undissolved matter

Stages 11 & 12 — Additional Redox Media

  • Water flows through another bed of media made from a high-purity alloy blend of copper and zinc
  • Media works on electrochemical and spontaneous oxidation-reduction principles
  • Chlorine is oxidized by the media
  • Supports additional redox filtration support after the RO membrane stage

Stage 13 — Additional Ion Exchange Resin

  • Water flows through another ion exchange resin stage
  • Supports reduction of heavy metals
  • Supports reduction of lead
  • Supports reduction of copper
  • Supports reduction of aluminum
  • Supports reduction of water hardness

Stage 14 — Granulated Activated Carbon

  • Water passes through granulated activated carbon
  • Supports post-filtration polishing
  • Supports organic contaminant adsorption
  • Supports taste and odor improvement

Stage 16 — Ultraviolet Water Sterilizer System

  • Water passes through an ultraviolet water sterilizer system
  • UV system is manufactured with axial flow reactors in 304 stainless steel
  • Uses hard glass germicidal lamps
  • Listed for water requiring a 99.99% reduction of bacteria
  • Listed for water requiring a 99.99% reduction of virus
  • Listed for water requiring a 99.99% reduction of protozoa
  • UV process is accomplished without adding harmful chemicals to drinking water

Stage 17 — 0.20 Micron Ultrafiltration Membrane

  • Water travels through a 0.20 micron ultrafiltration membrane
  • Supports removal of colloids
  • Supports removal of proteins
  • Supports removal of bacteria
  • Supports removal of viruses
  • Supports removal of parasites
  • Supports removal of protozoa
  • Supports removal of pyrogens, including gram-negative bacterial endotoxins
  • Supports removal of organic molecules larger than 0.20 micron
  • Supports reduction of many contaminants larger than the membrane rating

Contaminants / Water Quality Concerns Addressed

  • Sediment: Addressed through solid carbon and filtration pad stages
  • Silt: Addressed through solid carbon and filtration pad stages
  • Sand: Addressed through solid carbon and filtration pad stages
  • Dirt: Addressed through solid carbon and filtration pad stages
  • Rust: Addressed through one-micron filtration pads
  • Undissolved matter: Addressed through one-micron filtration pads
  • VOCs: Addressed through carbon filtration stages
  • Insecticides: Addressed through carbon filtration stages
  • Pesticides: Addressed through carbon filtration stages
  • Industrial solvents: Addressed through carbon filtration stages
  • Chlorine: Addressed through GAC and redox media stages
  • THMs: Addressed through GAC filtration
  • Benzene: Addressed through GAC filtration
  • Herbicides: Addressed through GAC filtration
  • PCBs: Addressed through GAC filtration
  • MTBE: Addressed through GAC filtration
  • Bad taste: Addressed through carbon filtration
  • Odors: Addressed through carbon filtration
  • Water hardness: Addressed through ion exchange resin stages
  • Lead: Addressed through ion exchange resin and redox media stages
  • Copper: Addressed through ion exchange resin and redox media stages
  • Aluminum: Addressed through ion exchange resin and redox media stages
  • Mercury: Addressed through Eagle Redox Alloy® media stage
  • Nickel: Addressed through Eagle Redox Alloy® media stage
  • Chromium: Addressed through Eagle Redox Alloy® media stage
  • Cadmium: Addressed through Eagle Redox Alloy® media stage
  • Iron: Oxidized into insoluble matter through Eagle Redox Alloy® media
  • Hydrogen sulfide: Oxidized into insoluble matter through Eagle Redox Alloy® media
  • Inorganic chemicals: Addressed through reverse osmosis membrane stage
  • Salts: Addressed through reverse osmosis membrane stage
  • Metals: Addressed through reverse osmosis and media stages
  • Minerals: Addressed through reverse osmosis membrane stage
  • Cysts: Addressed through one-micron filtration pads and RO membrane stage
  • Giardia: Addressed through filtration pads and RO membrane stage
  • Cryptosporidium: Addressed through filtration pads and RO membrane stage
  • Colloids: Addressed through ultrafiltration membrane stages
  • Proteins: Addressed through ultrafiltration membrane stages
  • Bacteria: Addressed through ultrafiltration and ultraviolet stages
  • Viruses: Addressed through ultrafiltration and ultraviolet stages
  • Parasites: Addressed through ultrafiltration membrane stages
  • Protozoa: Addressed through ultrafiltration and ultraviolet stages
  • Pyrogens: Addressed through ultrafiltration membrane stages
  • Fluoride: Optional exchange cartridge available
  • Nitrates: Optional exchange cartridge available
  • Arsenic: Optional exchange cartridge available

Performance Notes

  • The system is listed as 50 gallons per day.
  • Ultrafiltration is listed as a feature.
  • Ultraviolet is listed as a feature.
  • Pressure pump is listed as a feature.
  • Stage 16 is a dedicated ultraviolet water sterilizer system.
  • A 1 GPM ultraviolet lamp bulb is listed as a replacement part.
  • Influent water PSI directly affects GPD production.
  • RO is designed to work in a PSI range from 35–60.
  • 60 PSI is listed as optimum.
  • Pressure pump support may help support RO production in low-pressure applications.
  • Pressure pump support may help support RO production in high-TDS applications.
  • Units are manufactured standard with 110v electrical outlet.
  • 220v is available upon request.
  • Optional cartridges for fluoride, nitrates, arsenic, and other contaminants are available.
  • Source content includes broad contaminant language; Shopify copy should avoid turning these into absolute guarantees.

Specs

Product Specifications

Specification Value
Product Name Crystal Quest Thunder Ultrafiltration / Reverse Osmosis Under Sink Water Filter
Model / Identifier 4000MP
Sold By Healthy Hydro Supply Co
System Type Under sink ultrafiltration / reverse osmosis water filter
Series Type M Series with P Model pressure pump feature
Filtration Stages 17 stages
Production Rating 50 gallons per day
Pressure Pump Listed feature
Pressure Range 35–60 PSI
Optimum Pressure 60 PSI
Standard Electrical 110v
Optional Electrical 220v available upon request
Ultrafiltration Listed feature
Ultraviolet Listed feature
UV Reactor Material 304 stainless steel
M Series Cartridge 6-stage filtration cartridge
Unit Dimensions 16"L x 8"W x 27"H
Holding Tank Dimensions 18"H x 11"D
Holding Tank 3.2 gallon stainless steel pressurized holding tank with polypropylene inner liner and 2.0 gallon capacity
Product Manual Undersink-RO-Manual

Included Components

  • European lead-free long-reach designer faucet
  • Crystal Quest® 3.2 gallon stainless steel pressurized holding tank
  • Polypropylene inner liner
  • 2.0 gallon capacity
  • Interconnecting color-coded tubing
  • Filter cartridges
  • Ultrafiltration membrane
  • RO membrane
  • Wrenches
  • Installation hardware

Installation Instructions / Documents



Replacement Cartridges



Optional Replacement / Upgrade Cartridges



Series Notes

M Series

  • Uses 6-stage filtration cartridge
  • Includes post-membrane cartridge
  • Includes one-micron filter pad
  • Includes ERA-6500®
  • Includes ERA-9500®
  • Includes GAC coconut shell carbon
  • Includes ceramic ball resin
  • Includes another one-micron pad

P Models

  • P Models include a pressure pump
  • Consider P Models if water pressure is low
MP Models
  • M-Series systems equipped with a pressure pump.

Under-Sink Reverse Osmosis System Comparison Chart

Compare Crystal Quest under-sink reverse osmosis systems by filtration stages, treatment technology, pressure-pump availability, model number

Model

Filtration Stages

Pressure Pump

UV Sterilization

Ultrafiltration

2,000 M

16-stage

No

No

No

2,000 MP

16-stage

Yes

No

Yes

3,000 M

16-stage

No

Yes

Yes

3,000 MP

16-stage

Yes

Yes

Yes

4,000 M

17-stage

No

Yes

Yes

4,000 MP

17-stage

Yes

Yes

Yes


Install & Parts

The Crystal Quest Thunder Ultrafiltration / Reverse Osmosis Under Sink Water Filter should be selected and installed based on under sink plumbing type, water pressure, TDS level, electrical requirements, available cabinet space, pressure pump needs, ultraviolet lamp replacement needs, and cartridge configuration.

System Design Should Be Based On

  • Under sink installation space
  • Current plumbing type
  • Hard copper tubing
  • Flexible tubing
  • Saddle valve requirement
  • T-valve requirement
  • Influent water pressure
  • 35–60 PSI operating range
  • 60 PSI optimum pressure
  • Low water pressure conditions
  • High TDS conditions
  • Pressure pump support
  • Standard 110v electrical outlet
  • 220v request requirement
  • Faucet installation location
  • Holding tank space
  • RO membrane selection
  • UF membrane replacement needs
  • Capsule UF membrane replacement needs
  • UV lamp replacement needs
  • Optional specialty contaminant cartridges
  • Leak detector / flood-prevention valve preference
  • Local plumbing requirements

Installation Valve Notes

  • If current under sink plumbing is hard copper tubing, the saddle valve would be used.
  • If current under sink plumbing is flex tubing, the T-valve would be required.
  • During ordering, an installation valve must be specified to progress through the order entry screen.
  • During ordering, customers may choose the installation valve they prefer.

Leak Detector / Flood-Prevention Valve Note

  • Leak detector / flood-prevention valve is optional with purchase.
  • Leak detector / flood-prevention valve is highly recommended to help reduce the risk of property damage.
  • Flood damage can occur because of unpredictable circumstances, including installation errors.
  • Leak detector / flood-prevention language should be written as risk reduction, not as a total guarantee against leaks or property damage.

Pressure / Pump Notes

  • Pressure pump is listed as a feature for this 4000MP product content.
  • Influent water PSI directly affects GPD production.
  • The RO system is designed to work in a pressure range from 35–60 PSI.
  • 60 PSI is listed as optimum.
  • Pressure pump support may help support RO production when water pressure is low.
  • Pressure pump support may help support RO production when TDS is high.

Electrical Notes

  • Units are manufactured standard with a 110v electrical outlet.
  • Units are available in 220v upon request.

Parts & Accessories

Important Notes

  • The system is the 4000MP model.
  • The system is listed as 17 stages of filtration.
  • The system is listed at 50 gallons per day.
  • Ultrafiltration is listed as a feature.
  • Ultraviolet is listed as a feature.
  • Pressure pump is listed as a feature.
  • Stage 16 is a dedicated ultraviolet water sterilizer system.
  • The UV system is listed with axial flow reactors in 304 stainless steel.
  • The replacement cartridge list includes a 1 GPM Ultraviolet Lamp Bulb.
  • The source content lists the M Series 6-stage filtration cartridge.
  • Optional cartridges for fluoride, nitrates, arsenic, and other water contaminants are available.
  • Optional specialty cartridges should not be presented as included unless the selected product configuration includes them.
  • Influent water PSI directly affects gallons-per-day production.
  • The RO system is designed for 35–60 PSI, with 60 PSI listed as optimum.
  • Standard electrical is 110v, with 220v available upon request.
  • Customer support should be handled by a Healthy Hydro Supply Co associate.

FAQ & Support

What is the Crystal Quest Thunder Ultrafiltration / Reverse Osmosis Under Sink Water Filter 4000MP?

The Crystal Quest Thunder 4000MP is an under sink drinking water filtration system with 17 stages of filtration, including ultrafiltration, reverse osmosis, carbon filtration, ion exchange resin, redox media, ultraviolet treatment, pressure pump support, and post-membrane filtration support.

How many filtration stages does the 4000MP have?

The 4000MP has 17 stages of filtration.

What is the daily production rating?

The listed production rating is 50 gallons per day.

Does this 4000MP system include a pressure pump?

Yes. Pressure pump is listed as a feature in the provided 4000MP product content.

What pressure range does this RO system require?

The RO system is designed to work in a pressure range from 35–60 PSI.

What pressure is optimum?

The source content states that 60 PSI is optimum.

Does this system include ultrafiltration?

Yes. Ultrafiltration is listed as a feature, and ultrafiltration stages are included in the 17-stage process.

Does this system include ultraviolet?

Yes. Ultraviolet is listed as a feature, and Stage 16 is a dedicated ultraviolet water sterilizer system.

What is the ultraviolet stage made with?

The source content states that the ultraviolet water sterilizer system is manufactured with axial flow reactors in 304 stainless steel and hard glass germicidal lamps.

What does the UV stage support?

The source content describes the UV stage for water requiring a 99.99% reduction of bacteria, virus, and protozoa without adding harmful chemicals to drinking water.

What is the M Series cartridge?

The M Series uses a 6-stage filtration cartridge with a post-membrane cartridge, one-micron filter pad, ERA-6500®, ERA-9500®, GAC coconut shell carbon, ceramic ball resin, and another one-micron pad.

What does the 5 micron solid carbon cartridge do?

It supports reduction of VOCs, insecticides, pesticides, industrial solvents, and particles larger than 5 microns, including sediment, silt, sand, and dirt.

What does the ultrafiltration membrane do?

The ultrafiltration membranes support removal of colloids, proteins, bacteria, viruses, parasites, protozoa, pyrogens, and organic molecules larger than the membrane rating.

What does the reverse osmosis membrane do?

The Crystal Quest® RO membrane filters particles as small as 1/10,000 of a micron and supports reduction of many inorganic chemicals, salts, metals, minerals, microorganisms, Cryptosporidium, Giardia, and inorganic contaminants listed in the source content.

What is included with the installation kit?

The system includes a European lead-free long-reach designer faucet, stainless steel pressurized holding tank, color-coded tubing, filter cartridges, ultrafiltration membrane, RO membrane, wrenches, and installation hardware.

What is the holding tank size?

The system includes a Crystal Quest® 3.2 gallon stainless steel pressurized holding tank with a polypropylene inner liner and 2.0 gallon capacity.

What are the unit dimensions?

The unit dimensions are 16"L x 8"W x 27"H.

What are the holding tank dimensions?

The holding tank dimensions are 18"H x 11"D.

Which valve is needed for hard copper tubing?

If current under sink plumbing is hard copper tubing, the saddle valve would be used.

Which valve is needed for flex tubing?

If current under sink plumbing is flex tubing, the T-valve would be required.

Is 220v available?

Yes. Units are manufactured standard with 110v electrical outlet, and 220v is available upon request.

Are optional cartridges available?

Yes. Optional exchange filter cartridges are available for fluoride, nitrates, arsenic, and other water contaminants.

Is a leak detector / flood-prevention valve recommended?

Yes. It is optional with purchase, but highly recommended to help reduce the risk of property damage.

Does a leak detector guarantee no flood damage?

No. It should be positioned as risk reduction, not as a total guarantee against leaks or property damage.

Who should customers contact for system recommendations?

Customers should contact a Healthy Hydro Supply Co associate for system recommendations.

You may also like
