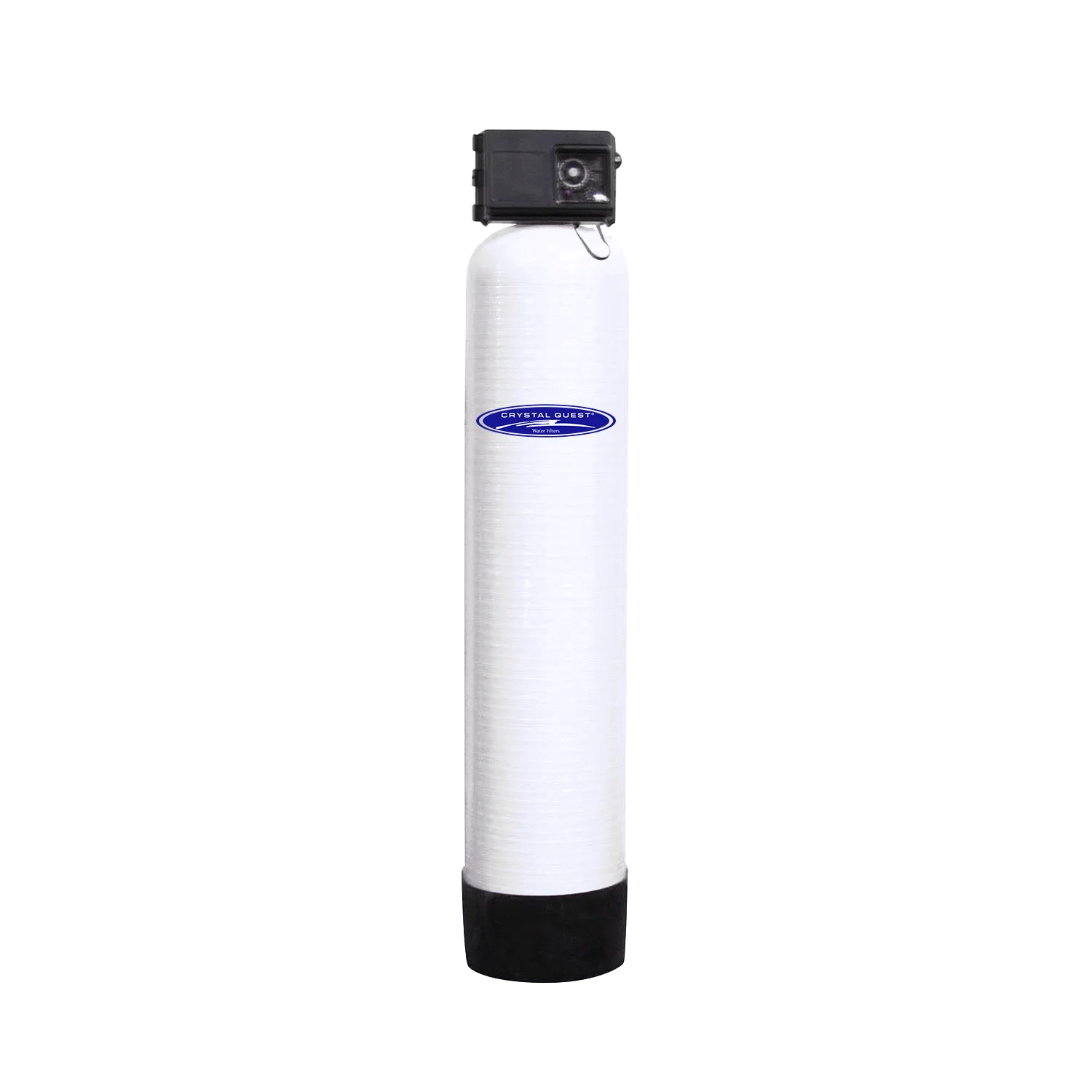

Crystal Quest SMART GAC Water Filtration System

Crystal Quest Commercial SMART GAC Water Filtration System available from Healthy Hydro Supply Co is a commercial SMART GAC water filtration system designed for commercial water filtration, contaminant reduction, taste improvement, odor reduction, and hard water treatment support.

This system uses SMART Multimedia filtration media with Granular Activated Carbon, also known as GAC, and is designed for high-demand commercial and industrial water treatment applications.

Product Information

• Product Name: Crystal Quest Commercial SMART GAC Water Filtration System
• Brand: Crystal Quest
• Sold By: Healthy Hydro Supply Co
• System Type: Commercial SMART GAC water filtration system
• Media Type: SMART Multimedia filtration media with Granular Activated Carbon, also known as GAC
• Primary Use: Commercial water filtration, contaminant reduction, taste improvement, odor reduction, and hard water treatment support
• Best Applications: Commercial buildings, industrial facilities, schools, government facilities, service industries, agriculture, and other high-demand water treatment applications
• Core Filtration Function: Designed to reduce and remove harmful contaminants using Crystal Quest SMART Multimedia, a special house blend of advanced filtration media
• Included Filtration Support: Customizable systems include pre-filters and post-filters for added filtration protection before and after the main treatment stage
• Optional Water Softener Pairing: System can be paired with a water softener to help address hard water problems

Description

The Crystal Quest Commercial SMART GAC Water Filtration System is designed for commercial and industrial water treatment applications that need advanced contaminant reduction, efficient filtration, and flexible system configuration.

This system uses Crystal Quest SMART Multimedia, a special house blend designed to reduce and remove harmful contaminants while supporting better water quality.

Unlike standard GAC filters, Crystal Quest Commercial SMART Filters include two types of Eagle Redox Alloys® to help prevent bacteria growth and extend the life of the Granulated Activated Carbons. Without these two ERA® media types, there may be a greater chance of bacteria growth in the filter media.

Each SMART GAC system is customizable and includes pre-filters and post-filters to support filtration before and after the main media tank. The system can also be paired with a water softener to help address hard water problems in commercial, industrial, agricultural, school, government, and service-industry applications.

SMART Multimedia filtration uses a proven layered design. Coarse media layers in the top of the tank trap larger particles, while finer media layers deeper in the media bed capture smaller particles. This allows filtration to occur throughout the entire bed, improving overall filtering efficiency.

SMART Multimedia filters typically remove particles from 5 to 15 microns in size. By comparison, a conventional single-media sand filter generally removes particles 30 microns or larger. This makes SMART Multimedia a strong option for applications that need finer particle reduction and more efficient commercial water filtration.

Benefits

The Crystal Quest Commercial SMART GAC Water Filtration System is designed for customers who need scalable commercial filtration with SMART Multimedia, GAC media, pre-filter and post-filter support, and flexible control head options.

Key Benefits

• Supports commercial water filtration
• Supports industrial water treatment
• Uses SMART Multimedia filtration media
• Uses Granular Activated Carbon, also known as GAC
• Designed for contaminant reduction
• Designed for taste improvement
• Designed for odor reduction
• Supports hard water treatment when paired with a water softener
• Includes pre-filters and post-filters for added filtration protection
• Uses layered media filtration
• Coarse media layers help trap larger particles
• Finer media layers help capture smaller particles deeper in the filtration bed
• Supports filtration throughout the entire media bed
• Typically removes particles from 5 to 15 microns in size
• Offers finer particle reduction than conventional single-media sand filters that generally remove particles 30 microns or larger
• Includes two types of Eagle Redox Alloys®
• ERA® media helps prevent bacteria growth in the media bed
• ERA® media helps extend the life of the Granulated Activated Carbons
• Supports extended useful lifespan
• Replacement needs vary based on system size, water consumption, and incoming water conditions
• Filtration cost may be less than a penny per gallon under suitable conditions
• Available in service flow rates from 15 GPM to 390 GPM
• Available with SMART Multimedia media volumes from 3 ft³ to 60 ft³
• Available with automatic control head options
• Available with manual backwash control options
• Available with manual upflow head options
• Engineered for commercial and industrial use

Best For

• Commercial buildings
• Industrial facilities
• Schools
• Government facilities
• Service industries
• Agriculture
• High-demand water treatment applications
• Commercial SMART GAC filtration
• Industrial GAC water treatment
• Commercial water filtration systems
• SMART Multimedia filtration systems
• Granular activated carbon filtration
• Taste improvement applications
• Odor reduction applications
• Finer particle reduction applications
• Commercial systems needing 5 to 15 micron particle reduction support
• Facilities needing scalable flow rates from 15 GPM to 390 GPM
• Facilities needing automatic or manual control head options
• Facilities wanting optional water softener pairing for hard water treatment support

Performance

The Crystal Quest Commercial SMART GAC Water Filtration System uses SMART Multimedia and Granular Activated Carbon to support commercial contaminant reduction, taste improvement, odor reduction, particle reduction, and water quality improvement.

SMART Multimedia Advantage

• Crystal Quest Commercial SMART Filters differ from standard GAC filters
• SMART Filters contain two types of Eagle Redox Alloys®
• ERA® media helps prevent bacteria growth
• ERA® media helps extend the life of the Granulated Activated Carbons
• Without the two ERA® media types, there may be a chance of bacteria growth
• SMART Multimedia has an extended useful lifespan
• Replacement needs vary based on system size, water consumption, and incoming water conditions
• Filtration cost may be less than a penny per gallon under suitable conditions

Layered Filtration Design

• SMART Multimedia filtration uses a proven layered media design
• Coarse media layers near the top of the tank trap larger particles
• Finer media layers deeper in the filtration bed capture smaller particles
• Filtration occurs throughout the entire media bed
• Layered media supports highly efficient filtration
• SMART Multimedia filters typically remove particles from 5 to 15 microns
• Conventional single-media sand filters generally remove particles 30 microns or larger

Contaminants / Water Quality Concerns Addressed

• Harmful contaminants: Designed to reduce and remove harmful contaminants using Crystal Quest SMART Multimedia
• Taste concerns: Designed for taste improvement
• Odor concerns: Designed for odor reduction
• Particles: Typically removes particles from 5 to 15 microns in size
• Larger particles: Coarse media layers help trap larger particles
• Smaller particles: Finer media layers deeper in the filtration bed help capture smaller particles
• Bacteria growth in media: ERA® media helps prevent bacteria growth in the filter media
• Hard water problems: System can be paired with a water softener to help address hard water problems
• High-demand water treatment: Designed for commercial, industrial, school, government, service industry, and agricultural applications

Compatible Valve and Control Head Options

15 GPM — 2510 Automatic Control Head

The 2510 Automatic Control Head is designed for filtration and water softening systems and provides two operational modes to match different water treatment needs.

Features

• Electromechanical timer valves
• 3/5" control valve
• Standard 1.9" distributor pilot
• High service flow rate of 19 GPM
• Backwash capacity of 17 GPM
• All-brass valve construction
• Engineered for commercial and industrial use

Available Add-Ons

• NXT Display Controller
• Meter valves

20–35 GPM — 2850 Automatic Control Head

The 2850 Automatic Control Head is designed for both filtration and water softening systems, with two operational modes for flexible commercial and industrial use.

Features

• Electromechanical timer valves
• 1 1/2" control valve
• Standard 1.9" distributor pilot
• High service flow rate of 60 GPM
• Backwash capacity of 47 GPM
• All-brass valve construction
• Fully adjustable 5-cycle control
• Engineered for commercial and industrial use

Available Add-Ons

• NXT Display Controller
• XT Display Controller
• Meter valves

60–75 GPM — 2900 Automatic Control Head

The 2900 Automatic Control Head is designed for commercial, industrial, and hot water applications requiring strong performance and reliable control.

Features

• Electromechanical timer valves
• 2" control valve
• High service flow rate of 106 GPM
• Backwash capacity of 36 GPM
• All-brass valve construction
• Self-adjusting backwash controller
• Engineered for commercial and industrial use

Available Add-Ons

• NXT Display Controller
• XT Display Controller
• Meter valves

200–390 GPM — 3900 Control Head

The 3900 Control Head is a heavy-duty control valve designed for high-flow filtration and softening applications.

Features

• NXT Display Controller
• 3" BSP female connections
• 6" tank adapters
• All-brass valve construction
• Supports downflow, also known as DF, regeneration
• Supports upflow, also known as UF, regeneration
• Engineered for commercial and industrial use

Available Add-Ons

• NXT Display Controller
• Meter valves

15–75 GPM — Manual Backwash Control

Manual Backwash Control is available for systems where simple manual operation is preferred.

Features

• Easy operation
• Manual Filter Valve, top mount, 1" in/out, 1" female drain, 1.05" OD riser, 2.5" 8-NPSM connection
• Manual Filter Valve, top mount, 2" in/out, 1.5" female drain, 1.5" OD riser, 4" 8-UN connection

15–75 GPM — Manual Upflow Head

Manual Upflow Head options are available for simple operation without electricity or backwash.

Features

• No electricity required
• No backwash required
• Easy operation
• Can be configured as upflow or downflow by plumbing the system in reverse
• Tank Head, UPVC, 2.5"-8NPSM opening, 1" NPT in/out, 1" NPT center riser
• Tank Head, UPVC, 4"-8UN opening, 2" NPT in/out, 1.5" NPT center riser

Performance Notes

• Service flow varies depending on water quality and filter configuration.
• Performance depends on incoming water quality, contaminant type, media volume, flow rate, contact time, pressure range, system size, pre-filter condition, post-filter condition, backwash configuration, and maintenance.
• Specific contaminant reduction percentages were not provided in the source product content.
• Do not claim the system removes every contaminant.
• Bacteria-growth language should be limited to the filter media benefit described for Eagle Redox Alloys® and should not be presented as a drinking water disinfection claim.
• Hard water treatment support requires pairing with a water softener and should not be treated as included hardness removal unless the softener configuration is selected.

Specs

Commercial SMART GAC System Specifications

Specification	15 GPM	20 GPM	35 GPM	60 GPM	75 GPM	185 GPM	200 GPM	245 GPM	390 GPM
Service Flow Rate	15 GPM	20 GPM	35 GPM	60 GPM	75 GPM	185 GPM	200 GPM	245 GPM	390 GPM
Peak Flow	22 GPM	41 GPM	60 GPM	95 GPM	140 GPM	250 GPM	270 GPM	280 GPM	450 GPM
Backwash Flow	5 GPM	7 GPM	12 GPM	15 GPM	25 GPM	35 GPM	50 GPM	65 GPM	75 GPM
Pipe Size	1"	1.5"	1.5"	2"	2"	2" / 3"	3"	3"	3"
Electronic Control Valve	2510	2850	2850	2900	2900	3150 / 3900	3900	3900	3900
SMART Multimedia	3 ft³	4 ft³	7 ft³	10 ft³	15 ft³	20 ft³	30 ft³	40 ft³	60 ft³
PSI Range	35–60	35–60	35–60	35–60	35–60	35–60	35–60	35–60	35–60
Mineral Tank Size	14" x 65"	16" x 65"	21" x 62"	24" x 72"	30" x 72"	36" x 72"	42" x 72"	48" x 72"	63" x 83"
Space Required, D x H	16" x 75"	18" x 75"	23" x 84"	24" x 95"	32" x 95"	40" x 192"	46" x 192"	52" x 192"	67" x 203"
Quartz	30 lbs	40 lbs	70 lbs	100 lbs	150 lbs	200 lbs	300 lbs	400 lbs	600 lbs



Valve / Manual Reference by GPM

GPM	Electronic Valve Manual	Mechanical Upflow Valve	Mechanical Down Flow / Backwashable Valve
15	2510 Control Head Manual	1"	1"
20	2850 Control Head Manual	1.5"	1.5"
35	2850 Control Head Manual	1.5"	1.5"
60	2900 Control Head Manual	1.5"	1.5"
75	2900 Control Head Manual	2"	2"
185	3150 Control Head Manual / 3900 Control Head Manual	N/A	N/A
200	3900 Control Head Manual	N/A	N/A
245	3900 Control Head Manual	N/A	N/A
390	3900 Control Head Manual	N/A	N/A

Primary Treatment Focus

• Commercial SMART GAC filtration
• SMART Multimedia filtration
• Granular Activated Carbon filtration
• Coconut GAC filtration support
• Catalytic GAC filtration support
• ERA 6500 & 9500 media support
• Ion exchange media support
• Taste improvement
• Odor reduction
• Particle reduction
• 5 to 15 micron particle reduction support
• Commercial contaminant reduction support
• Industrial water treatment support
• Hard water treatment support when paired with a water softener
• High-flow water filtration
• Automatic control head operation
• Manual backwash operation
• Manual up flow operation

Install & Parts

The Crystal Quest Commercial SMART GAC Water Filtration System should be selected based on service flow rate, peak flow, backwash flow, pipe size, SMART Multimedia volume, tank size, available space, PSI range, control valve type, pre-filter and post-filter needs, and commercial water treatment requirements.

System Design Should Be Based On

• Required service flow rate
• Required peak flow rate
• Backwash flow requirement
• Pipe size
• Electronic control valve selection
• Manual valve selection
• Mechanical upflow valve selection
• Mechanical downflow / backwashable valve selection
• SMART Multimedia volume
• PSI range
• Mineral tank size
• Space required
• Quartz quantity
• Facility water demand
• Incoming water quality
• Taste concerns
• Odor concerns
• Particle size concerns
• Pre-filter requirements
• Post-filter requirements
• Optional water softener pairing
• Automatic control preference
• Manual backwash preference
• No-electricity operation preference
• Upflow or downflow design preference
• Maintenance access
• Installation footprint

Parts & Accessories

  Filtration Media Information:

• Coconut GAC Product Data Sheet
• Coconut GAC Safety Data Sheet
• Catalytic Coconut GAC Product Data Sheet
• Catalytic Coconut GAC Safety Data Sheet
• ERA 6500 & 9500 Product Data Sheet
• ERA 6500 & 9500 Safety Data Sheet
• Ion Exchange Resin Product Data Sheet
• Ion Exchange Resin Safety Data Sheet

Installation Instructions / Documents

• 2510 Control Head Manual
• 2850 Control Head Manual
• 2900 Control Head Manual
• 3150 Control Head Manual
• 3900 Control Head Manual

Schematic Samples

• Single Standard Configuration
• Double Standard Configuration
• Triple Standard Configuration

Installation / Use Notes

• 2510 Automatic Control Head supports 15 GPM configuration.
• 2850 Automatic Control Head supports 20–35 GPM configurations.
• 2900 Automatic Control Head supports 60–75 GPM configurations.
• 3900 Control Head supports 200–390 GPM configurations.
• Manual Backwash Control supports 15–75 GPM applications.
• Manual Upflow Head supports 15–75 GPM applications.
• Manual Upflow Head requires no electricity.
• Manual Upflow Head requires no backwash.
• Manual Upflow Head can be configured as upflow or downflow by plumbing the system in reverse.
• Service flow varies depending on water quality and filter configuration.

Important Notes

• No warranty terms were provided in the source product content.
• No certified contaminant reduction percentages were provided in the source product content.
• No media replacement schedule was provided in the source product content.
• No complete installation step-by-step instructions were provided in the source product content.
• No exact model SKUs were provided for the SMART GAC tank configurations.
• Do not describe this system as a full water purifier that removes every contaminant.
• Bacteria-growth prevention language applies to the media bed support described for ERA® media; it should not be marketed as drinking water disinfection.
• Hard water treatment requires optional water softener pairing and should not be presented as included unless that configuration is selected.
• Performance depends on water testing, flow demand, selected configuration, incoming water quality, and maintenance.

FAQ & Support

What is the Crystal Quest Commercial SMART GAC Water Filtration System?

The Crystal Quest Commercial SMART GAC Water Filtration System is a commercial SMART GAC water filtration system that uses SMART Multimedia filtration media with Granular Activated Carbon, also known as GAC.

What is this system used for?

It is used for commercial water filtration, contaminant reduction, taste improvement, odor reduction, and hard water treatment support when paired with a water softener.

What applications is this system best for?

It is best for commercial buildings, industrial facilities, schools, government facilities, service industries, agriculture, and other high-demand water treatment applications.

What is SMART Multimedia?

SMART Multimedia is a Crystal Quest house blend of advanced filtration media used for commercial water filtration and contaminant reduction support.

How is this different from a standard GAC filter?

Crystal Quest Commercial SMART Filters include two types of Eagle Redox Alloys® that help prevent bacteria growth and extend the life of the Granulated Activated Carbons.

Does this system include pre-filters and post-filters?

Yes. The source content states that these customizable systems include pre-filters and post-filters for added filtration protection before and after the main treatment stage.

Can this system be paired with a water softener?

Yes. The system can be paired with a water softener to help address hard water problems.

What particle size does SMART Multimedia typically remove?

SMART Multimedia filters typically remove particles from 5 to 15 microns in size.

How does that compare to a conventional sand filter?

A conventional single-media sand filter generally removes particles 30 microns or larger.

What service flow rates are available?

Listed service flow rates include 15, 20, 35, 60, 75, 185, 200, 245, and 390 GPM.

What peak flow rates are available?

Listed peak flow rates range from 22 GPM to 450 GPM.

What is the PSI range?

The listed PSI range is 35–60.

What SMART Multimedia volumes are listed?

Listed SMART Multimedia volumes range from 3 ft³ to 60 ft³.

What control heads are available?

Control head options include 2510, 2850, 2900, 3150 / 3900, and 3900 electronic control valves, depending on system size.

Is manual control available?

Yes. Manual Backwash Control and Manual Upflow Head options are available for 15–75 GPM applications.

Does the Manual Upflow Head require electricity?

No. The Manual Upflow Head requires no electricity.

Does the Manual Upflow Head require backwash?

No. The Manual Upflow Head requires no backwash.

Can the Manual Upflow Head be installed as upflow or downflow?

Yes. It can be configured as upflow or downflow by plumbing the system in reverse.

Does this system remove all contaminants?

No. The source content does not provide a universal contaminant-removal guarantee. Performance depends on water quality, media volume, flow rate, contact time, system sizing, configuration, and maintenance.

Are media data sheets listed?

Yes. Listed media documents include Coconut GAC, Catalytic Coconut GAC, ERA 6500 & 9500, and Ion Exchange Resin product and safety data sheets.
